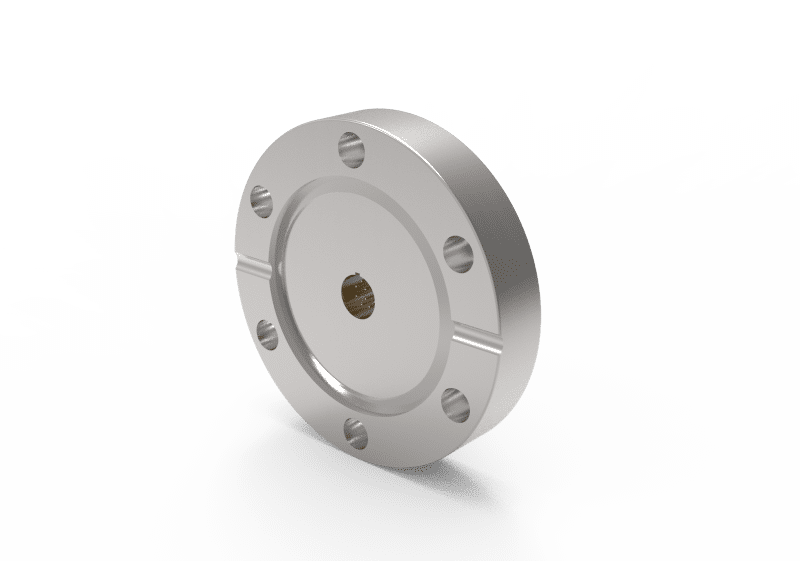

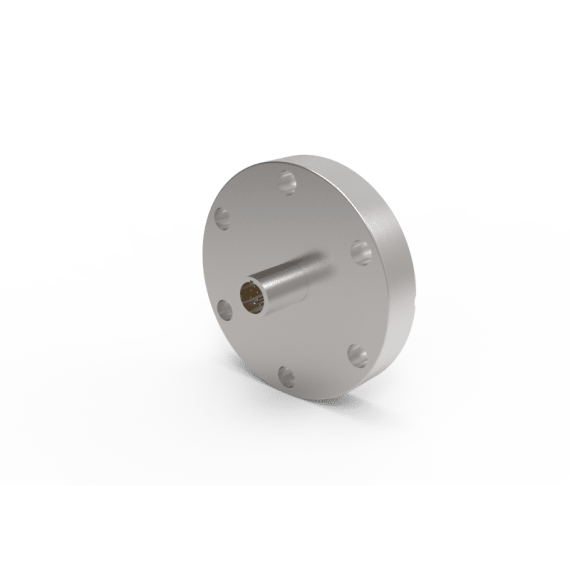

CF40-VB-1B-10 Push-Pull Compact Power Push-Pull Compact Power
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Push-Pull Compact Power |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Contact coating | Gold-plated |
| Article no. | 304947 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 10 |
| Max. voltage | 0,3 kV DC |
| Max. voltage | 0.3 kV DC |
| Max. current per contact | 3 A |
| Maximum current per contact | 3 A |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Kovar® |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Diameter contact(s) | 0,5 mm |
| Diameter contact(s) | 0.02 ″ |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 27,4 mm |
| Length | 1.079 ″ |
| Purity class | PCS |
