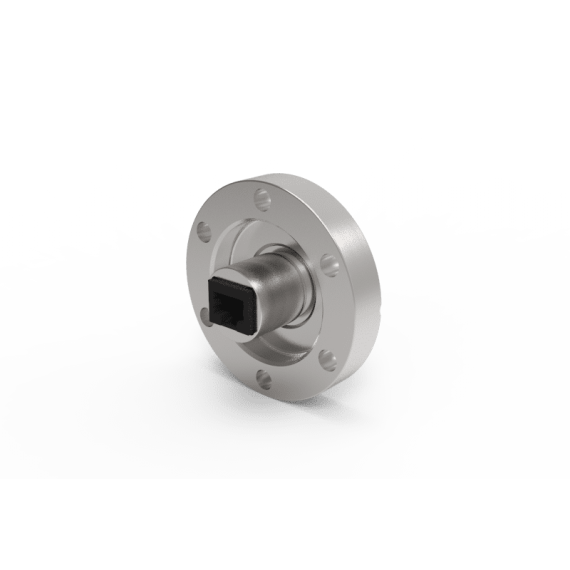

CF40-RJ45-FF-GC-CB RJ45 RJ45
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | RJ45 |
|---|---|
| Bakeout temperature | 392 °F |
| Max. bakeout temperature | 200 °C |
| Contact coating | Gold-plated |
| Article no. | 360564 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 8 |
| Max. voltage | 0,05 kV DC |
| Max. voltage | 0.05 kV DC |
| Max. current per contact | 0,05 A |
| Maximum current per contact | 0.05 A |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -40 °C |
| Min. operating temperature | -40 °F |
| Max. operating temperature | 160 °C |
| Max. operating temperature | 320 °F |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 51 mm |
| Length | 2.008 ″ |
| Length 2 | 28,2 mm |
| Length 2 | 1.11 ″ |
| Length 3 | 22,8 mm |
| Length 3 | 0.898 ″ |
| Length 4 | 13 mm |
| Length 4 | 0.512 ″ |
| Purity class | PCS |
