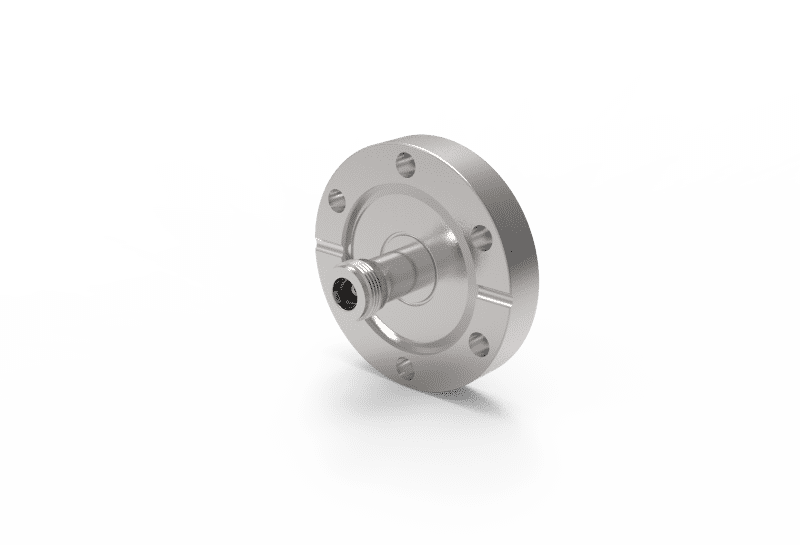

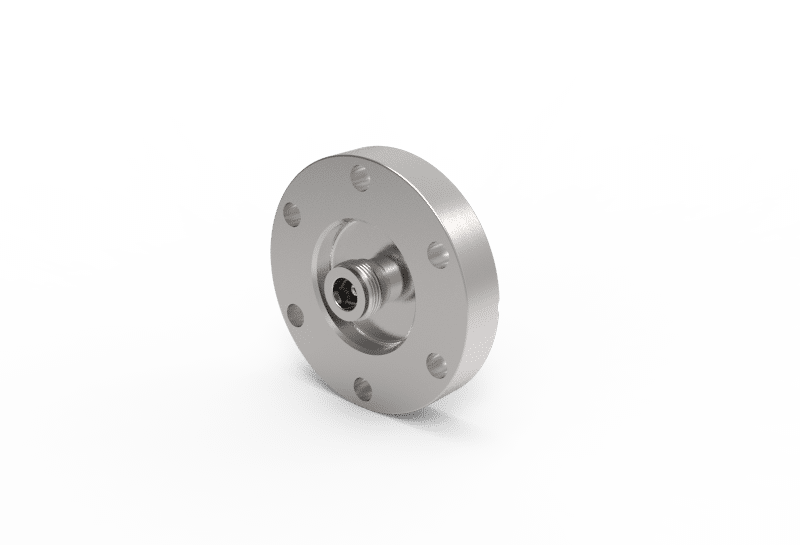

CF40-N50-GS-DE-GC-SS Type N 50 Ohm Type N 50 Ohm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type N 50 Ohm |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Article no. | 364921 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 1,5 kV DC |
| Max. voltage | 1.5 kV DC |
| Max. current per contact | 1 A |
| Maximum current per contact | 1 A |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 6 GHz |
| Frequency | 6 GHz |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material contact(s) | Stainless steel 304 |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 19,5 mm |
| Length | 0.768 ″ |
| Length 2 | 23,9 mm |
| Length 2 | 0.941 ″ |
| Length 3 | 13 mm |
| Length 3 | 0.512 ″ |
| Purity class | PCS |
