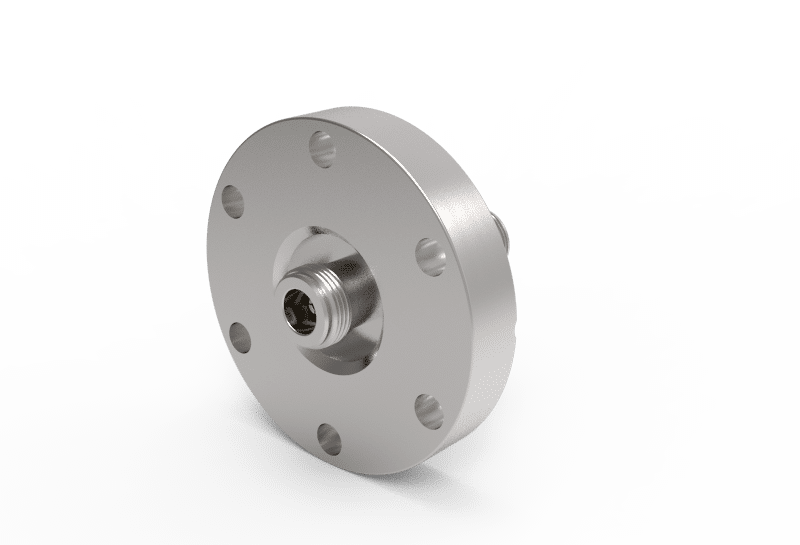

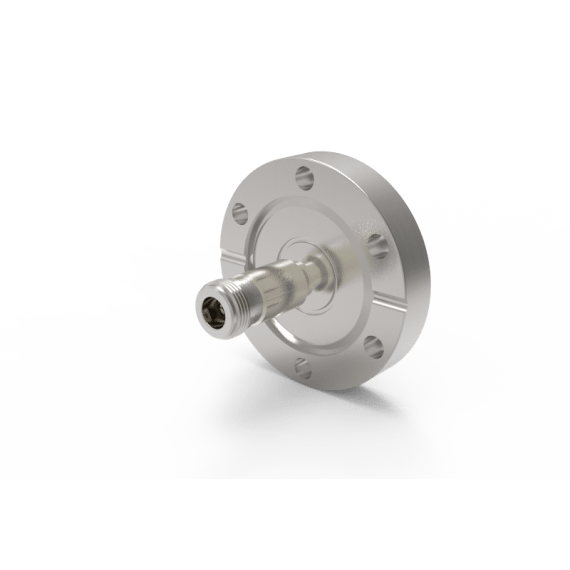

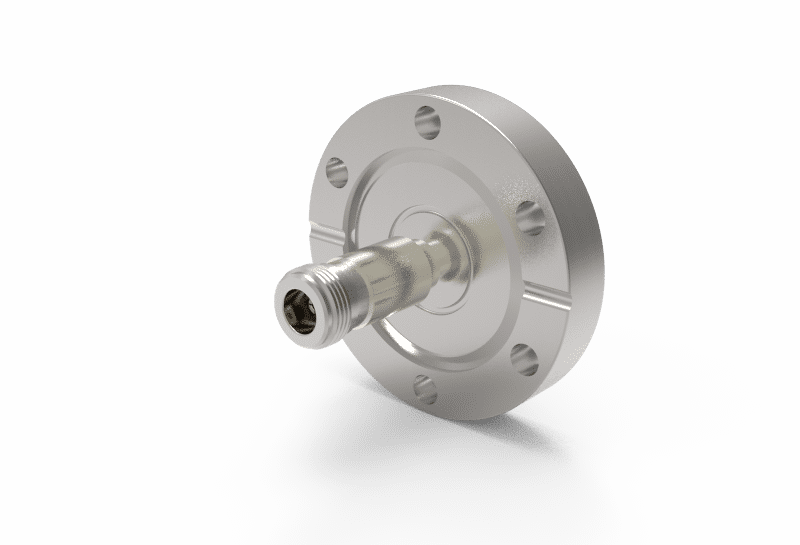

CF40-N50-GS-DE-CE-SS Type N 50 Ohm Type N 50 Ohm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type N 50 Ohm |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 321904 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 1,5 kV DC |
| Max. voltage | 1.5 kV DC |
| Max. current per contact | 5 A |
| Maximum current per contact | 5 A |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 4 GHz |
| Frequency | 4 GHz |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Kovar® |
| Material contact(s) | Stainless steel |
| Magnetic | Yes |
| Min. operating temperature | -80 °C |
| Min. operating temperature | -112 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 20,1 mm |
| Length | 0.791 ″ |
| Length 2 | 36,7 mm |
| Length 2 | 1.445 ″ |
| Length 3 | 13 mm |
| Length 3 | 0.512 ″ |
| Purity class | PCS |
