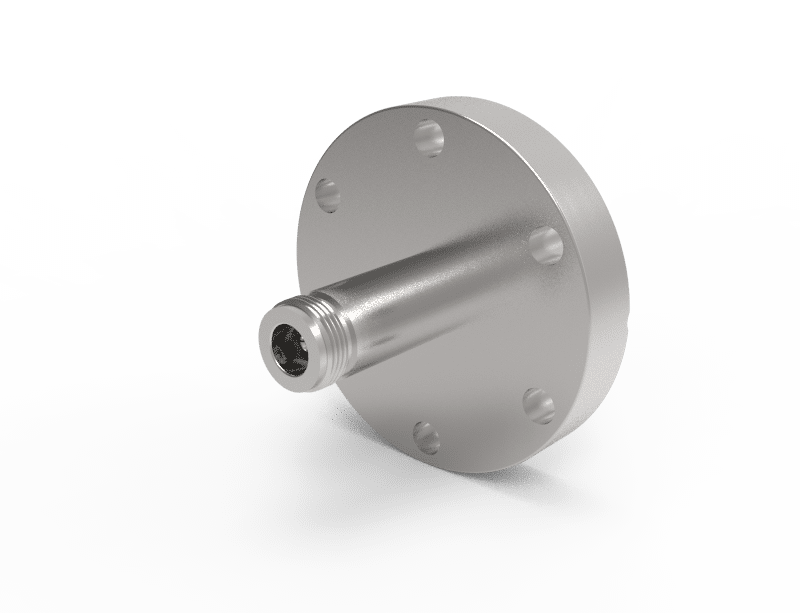

CF40-N-GS-SE-CE-SS Typ N Typ N
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type N |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 305527 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 1,5 kV DC |
| Max. voltage | 1.5 kV DC |
| Max. current per contact | 3,6 A |
| Maximum current per contact | 3.6 A |
| Impedance | Not matched |
| Shield | Grounded |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Stainless steel 304 |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Diameter contact(s) | 2,4 mm |
| Diameter contact(s) | 0.094 ″ |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Diameter | 2,4 mm |
| Diameter | 0.094 ″ |
| Length | 49,5 mm |
| Length | 1.949 ″ |
| Length 2 | 5,4 mm |
| Length 2 | 0.213 ″ |
| Length 3 | 13 mm |
| Length 3 | 0.512 ″ |
| Purity class | PCS |
