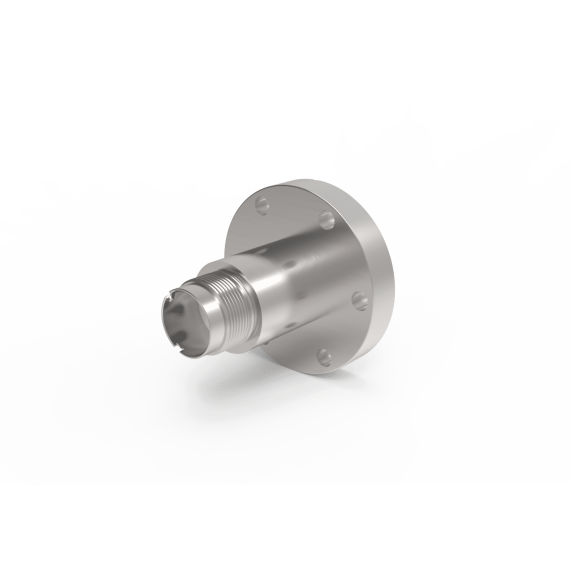

CF40-MPCHV12-2-SE-CE-MO High Voltage 12 kV DC High Voltage 12 kV DC
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | High Voltage 12 kV DC |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Contact coating | Nickel-plated |
| Article no. | 321035 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 2 |
| Max. voltage | 12 kV DC |
| Max. voltage | 12 kV DC |
| Max. current per contact | 13 A |
| Maximum current per contact | 13 A |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Molybdenum |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 1,6 mm |
| Diameter contact(s) | 0.063 ″ |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Diameter | 1,6 mm |
| Diameter | 0.063 ″ |
| Length | 94 mm |
| Length | 3.701 ″ |
| Length 2 | 29,3 mm |
| Length 2 | 1.154 ″ |
| Purity class | PCS |
