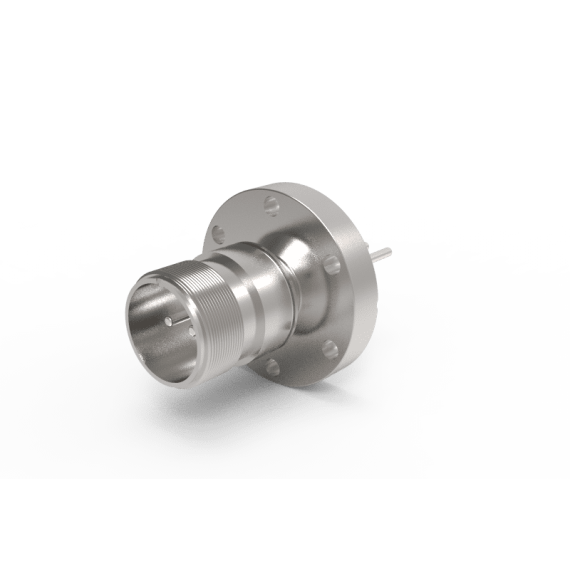

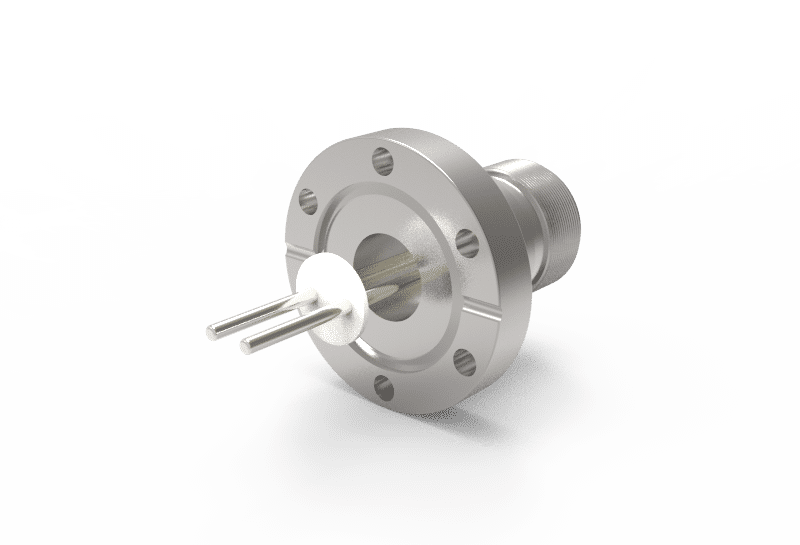

CF40-MPC5HC-2-SE-CE-NI MPC5HC MPC5HC
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | MPC5HC |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 311730 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 2 |
| Max. voltage | 0,7 kV DC |
| Max. voltage | 0.7 kV DC |
| Max. current per contact | 25 A |
| Maximum current per contact | 25 A |
| Impedance | Not specified |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | nickel |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 3,6 mm |
| Diameter contact(s) | 0.142 ″ |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Diameter | 10,9 mm |
| Diameter | 0.429 ″ |
| Diameter 2 | 3,6 mm |
| Diameter 2 | 0.142 ″ |
| Length | 112 mm |
| Length | 4.409 ″ |
| Length 2 | 62 mm |
| Length 2 | 2.441 ″ |
| Purity class | PCS |
