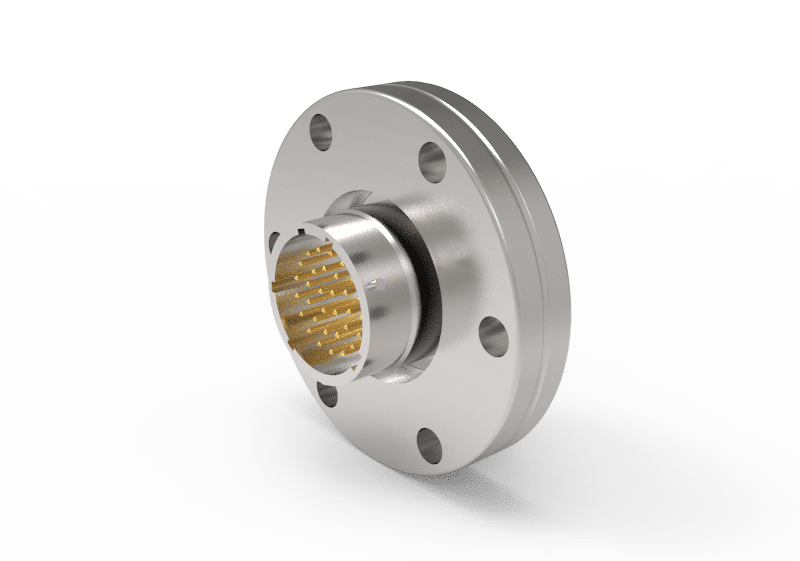

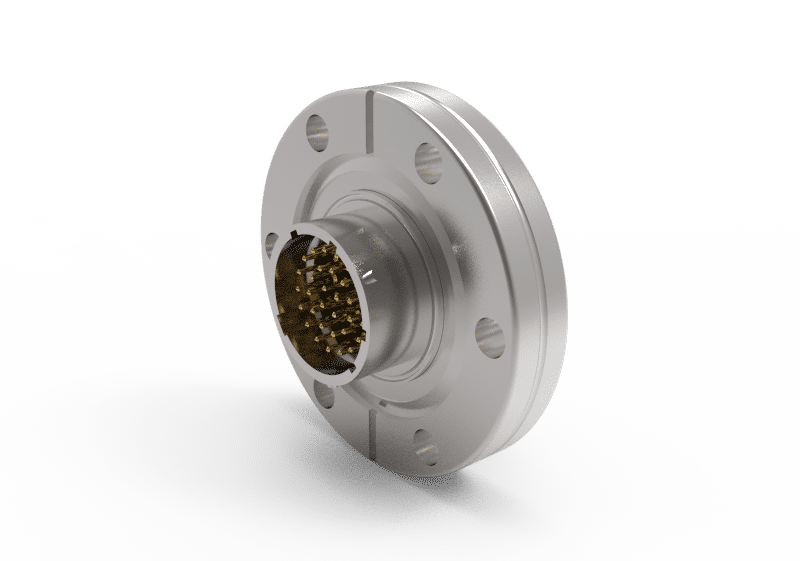

CF40-MPC2HV3-32-DE-P-CBG High Voltage 3 kV DC High Voltage 3 kV DC
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | High Voltage 3 kV DC |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Contact coating | Gold-plated |
| Article no. | 360561 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 32 |
| Max. voltage | 3 kV DC |
| Max. voltage | 3 kV DC |
| Max. current per contact | 7,5 A |
| Maximum current per contact | 7.5 A |
| Impedance | Not specified |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material contact(s) | Beryllium copper |
| Magnetic | No |
| Min. operating temperature | -40 °C |
| Min. operating temperature | -40 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Diameter contact(s) | 1 mm |
| Diameter contact(s) | 0.039 ″ |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 37,5 mm |
| Length | 1.476 ″ |
| Purity class | PCS |
