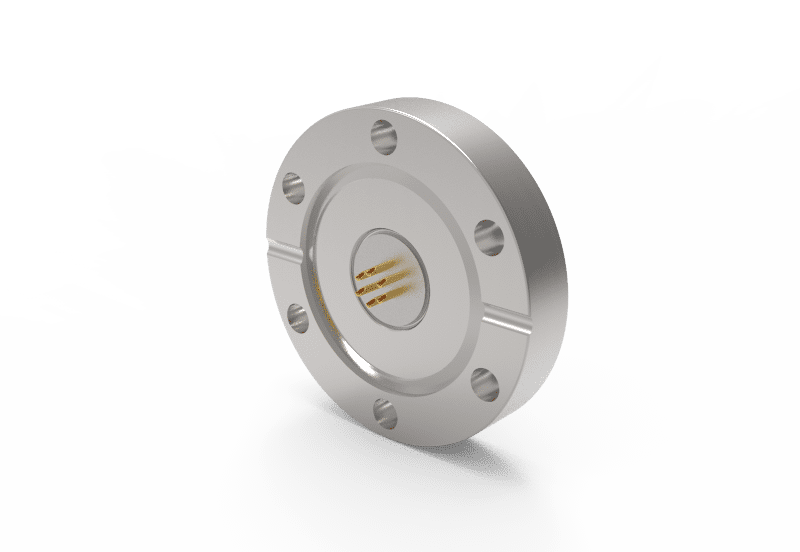

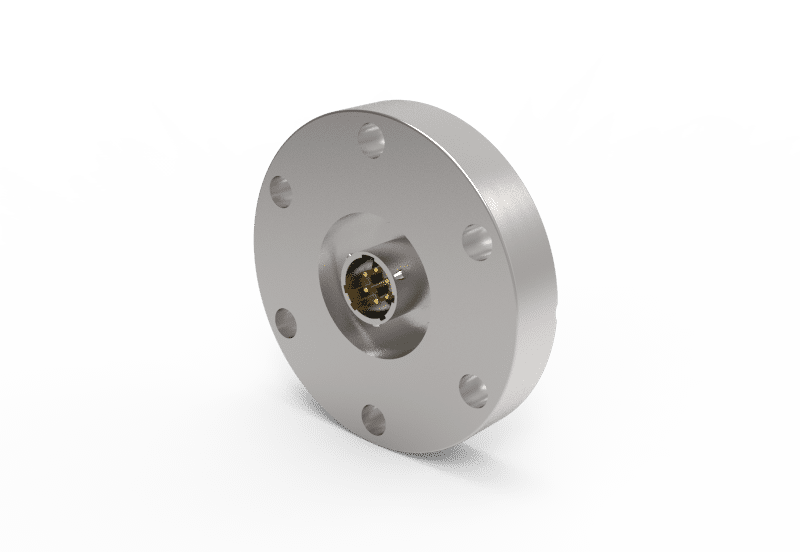

CF40-MPC2-6-SES-CE-SSG Single-ended, Solder cups Single-ended, Solder cups
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | MPC2, single-ended, solder cups |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Contact coating | Gold-plated |
| Article no. | 300331 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 6 |
| Max. voltage | 1 kV DC |
| Max. voltage | 1 kV DC |
| Max. current per contact | 5 A |
| Maximum current per contact | 5 A |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Stainless steel |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Diameter contact(s) | 1 mm |
| Diameter contact(s) | 0.039 ″ |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 14,2 mm |
| Length | 0.559 ″ |
| Length 2 | 4,6 mm |
| Length 2 | 0.181 ″ |
| Inner diameter solder cups | 1,07 mm |
| Inner diameter solder cups | 0.042 ″ |
| Purity class | PCS |
