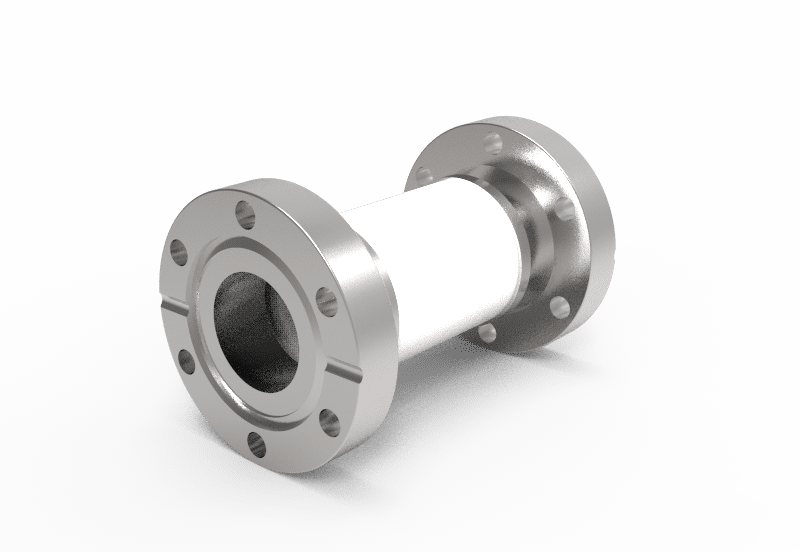

CF40-ISO35-CE-SS318 Vacuum Vacuum
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Isolators, vacuum |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 300300 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Max. voltage | 35 kV DC |
| Max. voltage | 35 kV DC |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | Not specified |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Copper alloy |
| Material insulation | Alumina ceramic |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Diameter | 32 mm |
| Diameter | 1.26 ″ |
| Diameter 2 | 30 mm |
| Diameter 2 | 1.181 ″ |
| Diameter 3 | 43,2 mm |
| Diameter 3 | 1.701 ″ |
| Length | 107 mm |
| Length | 4.213 ″ |
| Length 2 | 51 mm |
| Length 2 | 2.008 ″ |
| Purity class | PCS |
