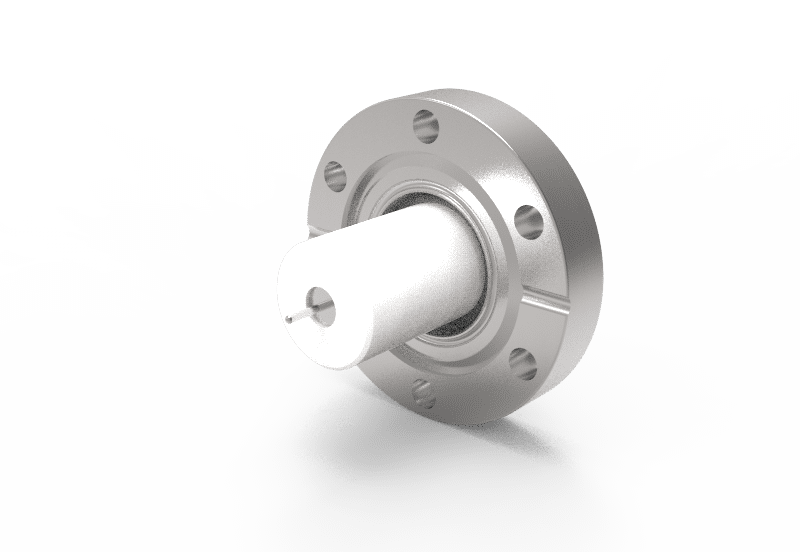

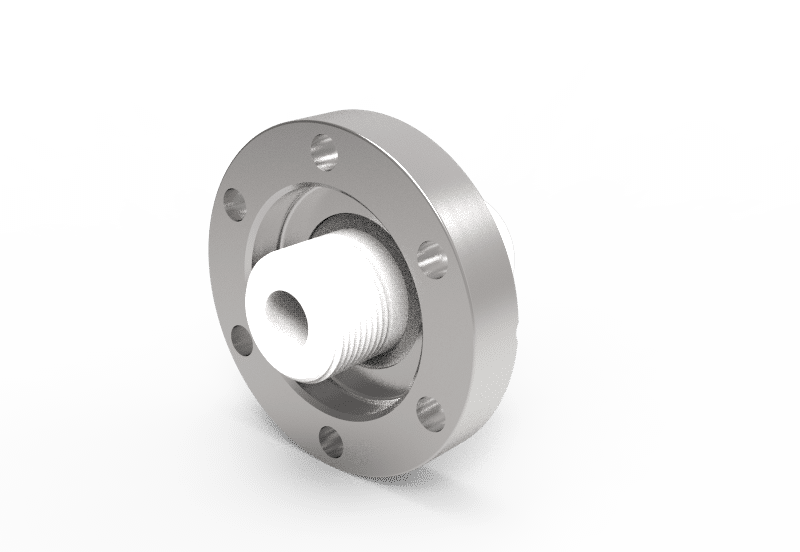

CF40-HV50S-CE-CRS16 40 - 50 kV DC 40 - 50 kV DC
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | 40-50 kV DC |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 304631 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 50 kV DC |
| Max. voltage | 50 kV DC |
| Max. current per contact | 10 A |
| Maximum current per contact | 10 A |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Kovar® |
| Material insulation | Alumina ceramic |
| Material contact(s) | Stainless steel |
| Magnetic | Yes |
| Min. operating temperature | -80 °C |
| Min. operating temperature | -112 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 1,6 mm |
| Diameter contact(s) | 0.063 ″ |
| Length contact(s), vacuum side | 39 mm |
| Length contact | 1.535 ″ |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 63 mm |
| Length | 2.48 ″ |
| Length 2 | 9 mm |
| Length 2 | 0.354 ″ |
| Purity class | PCS |
