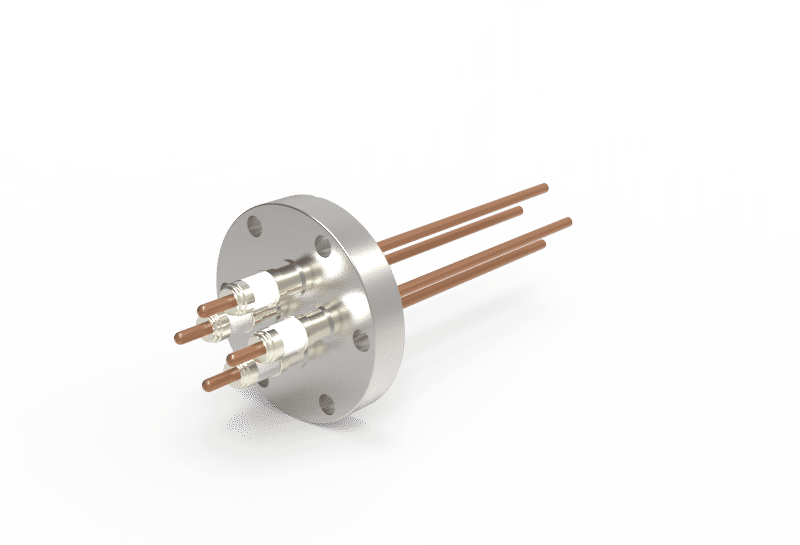

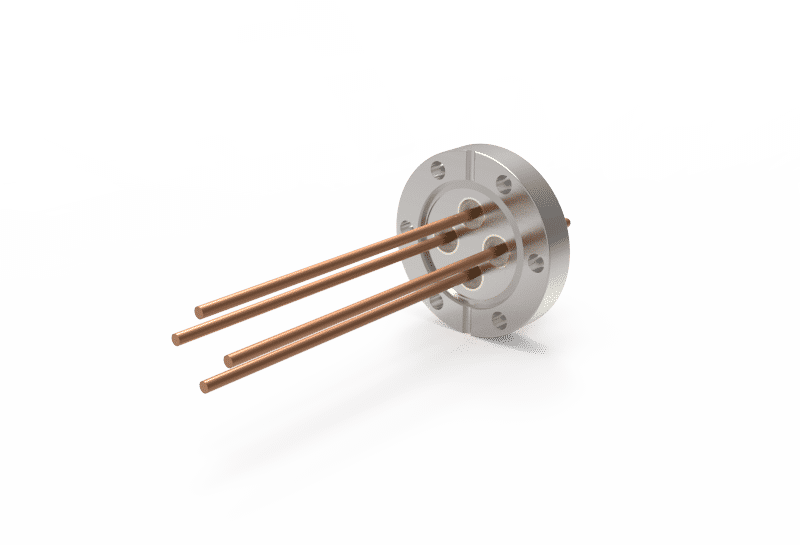

CF40-HV10S-4-CE-CU39 Conductor-Ø 3.9 mm Conductor-Ø 3.9 mm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | 10 kV DC, contact-Ø 3.9 mm |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 300280 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 4 |
| Max. voltage | 10 kV DC |
| Max. voltage | 10 kV DC |
| Max. current per contact | 100 A |
| Maximum current per contact | 100 A |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Copper |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 3,9 mm |
| Diameter contact(s) | 0.154 ″ |
| Length contact(s), vacuum side | 123 mm |
| Length contact | 4.843 ″ |
| Diameter | 23 mm |
| Diameter | 0.906 ″ |
| Length | 171 mm |
| Length | 6.732 ″ |
| Length 2 | 11 mm |
| Length 2 | 0.433 ″ |
| Purity class | PCS |
