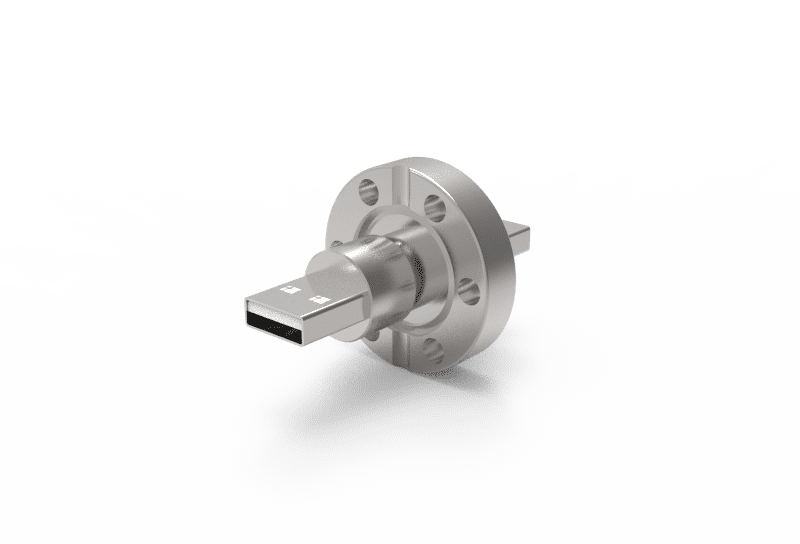

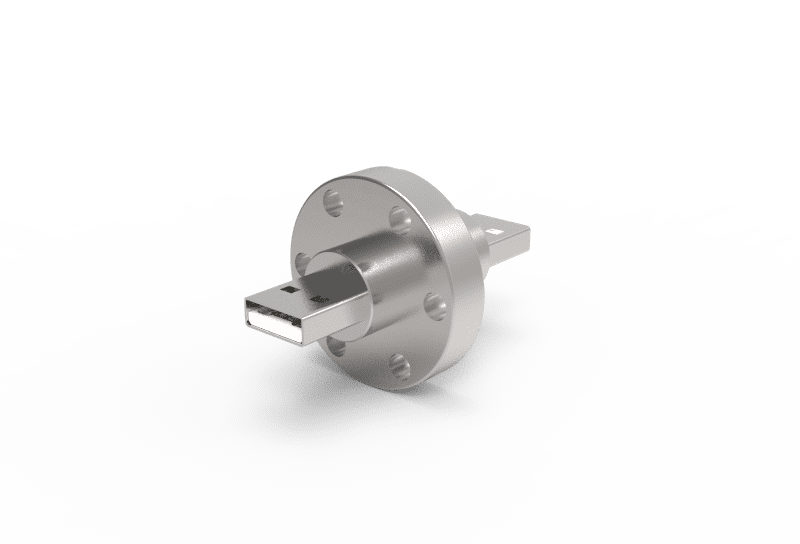

CF16-USB2.0-MM-GC-SS USB USB
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | USB |
|---|---|
| Bakeout temperature | 392 °F |
| Max. bakeout temperature | 200 °C |
| Article no. | 321891 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 4 |
| Max. voltage | 0,03 kV DC |
| Max. voltage | 0.03 kV DC |
| Max. current per contact | 1 A |
| Maximum current per contact | 1 A |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Stainless steel |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Outer diameter | 34 mm |
| Outer diameter | 1.339 ″ |
| Length | 53,3 mm |
| Length | 2.098 ″ |
| Length 2 | 26,6 mm |
| Length 2 | 1.047 ″ |
| Length 3 | 26,7 mm |
| Length 3 | 1.051 ″ |
| Length 4 | 7,6 mm |
| Length 4 | 0.299 ″ |
| Purity class | PCS |
