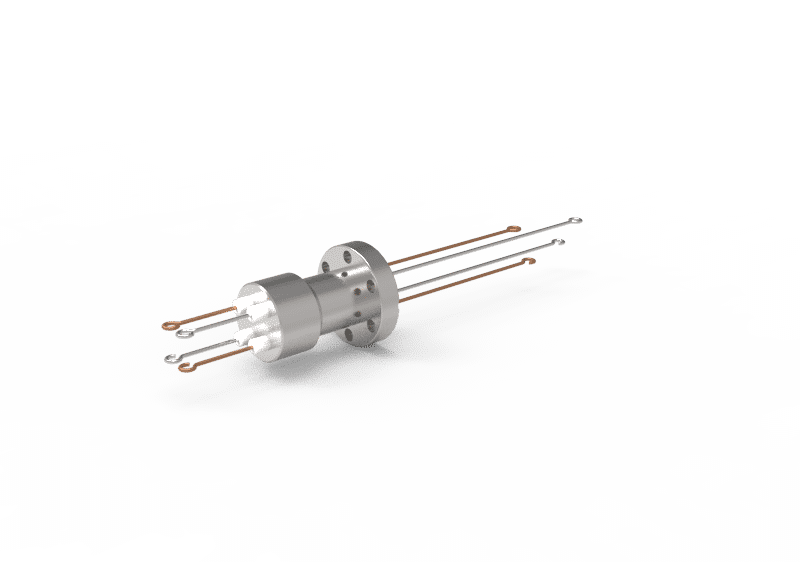

CF16-TCL2-CE-T 2 Pairs 2 Pairs
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Loop type |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 300232 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of TC pairs | 2 |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | None |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Thermocouple type | T |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Outer diameter | 34 mm |
| Outer diameter | 1.339 ″ |
| Diameter | 25,4 mm |
| Diameter | 1 ″ |
| Diameter 2 | 1,3 mm |
| Diameter 2 | 0.051 ″ |
| Length | 102 mm |
| Length | 4.016 ″ |
| Length 2 | 77 mm |
| Length 2 | 3.031 ″ |
| Length 3 | 73 mm |
| Length 3 | 2.874 ″ |
| Purity class | PCS |
