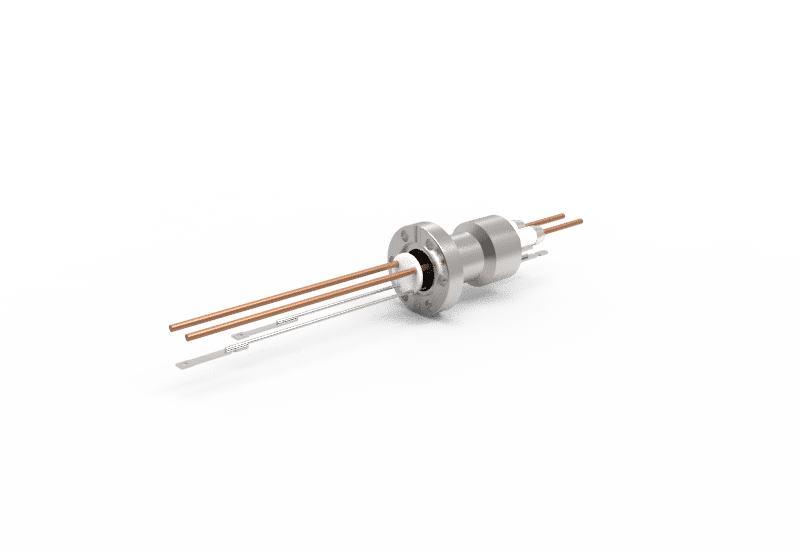

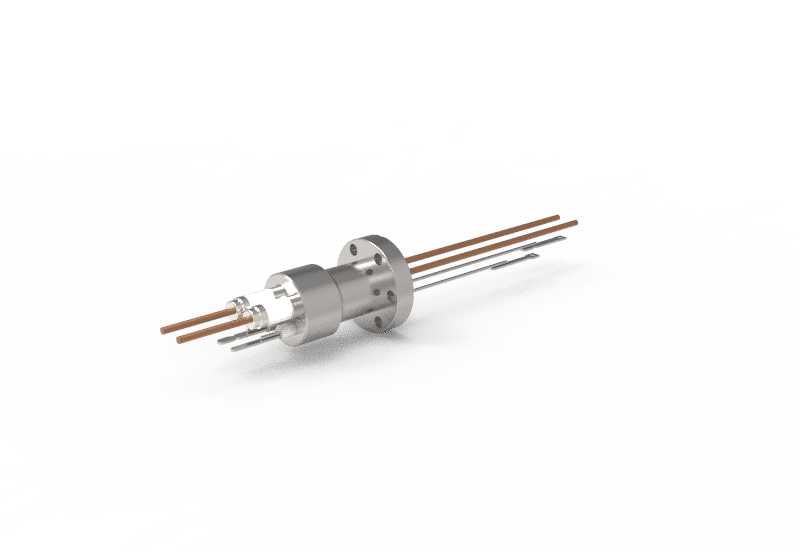

CF16-TC1HV5-CE-C-2CU24 Copper conductor Copper conductor
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Combination with 2x power feedthrough, Copper |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 300223 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 2 |
| Number of TC pairs | 1 |
| Max. voltage | 5 kV DC |
| Max. voltage | 5 kV DC |
| Max. current per contact | 55 A |
| Maximum current per contact | 55 A |
| Impedance | Not specified |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Copper |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 2,4 mm |
| Diameter contact(s) | 0.094 ″ |
| Purity class | PCS |
