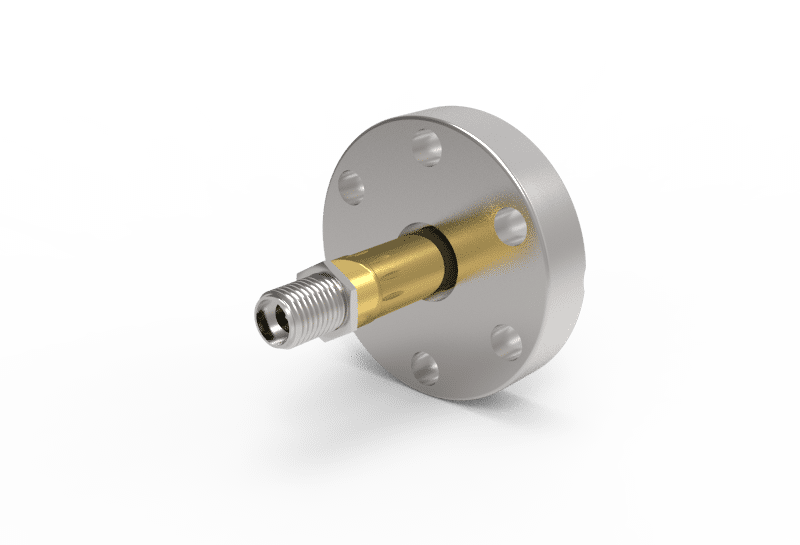

CF16-SMA50-40GHZ SMA 50 Ohm, 40 GHz SMA 50 Ohm, 40 GHz
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | SMA 50 Ohm, 40 GHz |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Contact coating | Gold-plated |
| Article no. | 348197 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 1 A |
| Maximum current per contact | 1 A |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 40 GHz |
| Frequency | 40 GHz |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material contact(s) | Beryllium copper |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Outer diameter | 34 mm |
| Outer diameter | 1.339 ″ |
| Length | 33 mm |
| Length | 1.299 ″ |
| Length 2 | 5,9 mm |
| Length 2 | 0.232 ″ |
| Length 3 | 7 mm |
| Length 3 | 0.276 ″ |
| Purity class | PCS |
