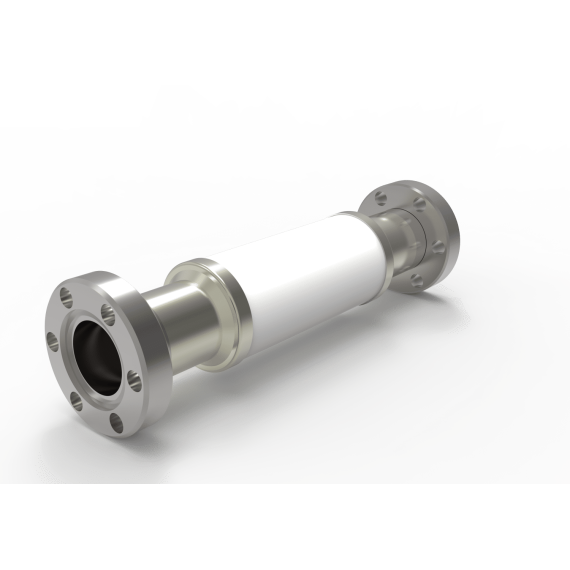

CF16-ISO35M-CE-KOV190 Vacuum Vacuum
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Isolators, vacuum |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 314145 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Max. voltage | 35 kV DC |
| Max. voltage | 35 kV DC |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | Not specified |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Kovar® |
| Material insulation | Alumina ceramic |
| Magnetic | Yes |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Outer diameter | 34 mm |
| Outer diameter | 1.339 ″ |
| Inner diameter | 16 mm |
| Inner diameter | 0.63 ″ |
| Diameter | 19 mm |
| Diameter | 0.748 ″ |
| Diameter 2 | 16 mm |
| Diameter 2 | 0.63 ″ |
| Diameter 3 | 26 mm |
| Diameter 3 | 1.024 ″ |
| Length | 117,6 mm |
| Length | 4.63 ″ |
| Length 2 | 50,8 mm |
| Length 2 | 2 ″ |
| Purity class | PCS |
