CF 8.00, 6.0 in. ID Gate and Bonnet Kit, Viton, for HVA, Manual and Pneumatic Gate Valves. PN: KSB60M.

Write a review
$15237
On backorder
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
CF 8.00, 6.0 in. ID Gate and Bonnet Kit, Viton, for HVA, Manual and Pneumatic Gate Valves.
HVA Part Number: KSB60M.

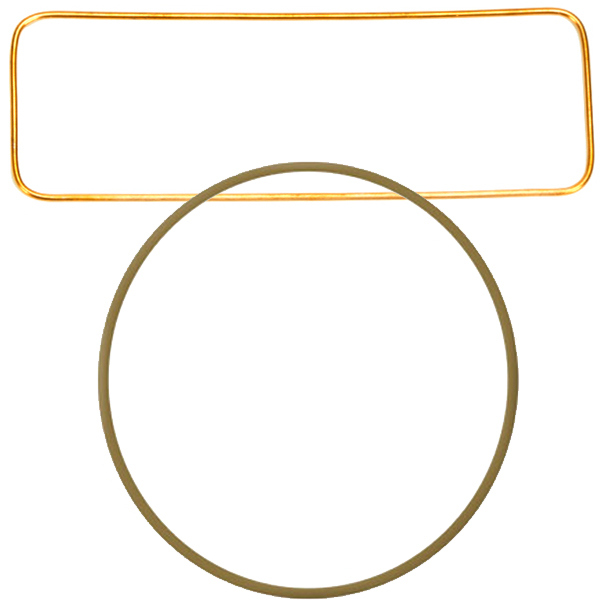

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 8.00 inch CF Conflat gate valves, models 11120-0600 and 11222-0600R.

Please download the installation instructions.

HVA-11000-Series-Stainless-Steel-Gate-Valves-Datasheet.pdf (HVA-11000-Series-Stainless-Steel-Gate-Valves-Datasheet.pdf, 131 Kb) [Download]

11000_Series_Pneumatic_Gate_Valve_Instruction_Manual.pdf (11000_Series_Pneumatic_Gate_Valve_Instruction_Manual.pdf, 1,712 Kb) [Download]

Ideal-Vacuum-Company-Image_med.pdf (Ideal-Vacuum-Company-Image_med.pdf, 7,973 Kb) [Download]
