Centering Ring Assembly DN 63 ISO-LF, with Fixed 30 Mesh Screen, ISO-63, Stainless Steel & Viton O-Ring
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

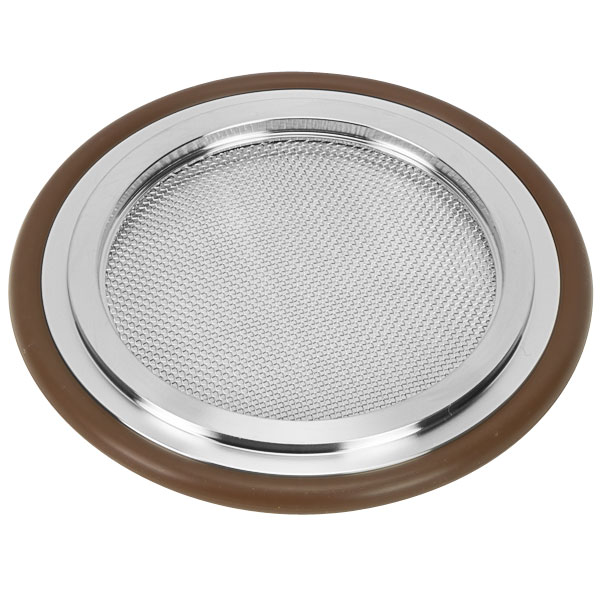

These DN 63 ISO-LF centering rings with fixed 30 mesh screen and Viton O-ring follow ISO-LF standards and have a flange size of ISO-63. These centering rings, with non-removeable 30 mesh screen, are useful in many situations in which a vacuum system or instrument needs to be protected from contamination by particulates generated from outside the system or from within. They are commonly used in between a turbo pump and foreline. These corrosion resistant stainless steel centering rings have an external Viton O-ring attached. Viton® is well known for its excellent resistance to heat (400°F/200°C) and to aggressive fuels and chemicals. Viton® is a registered trademark of DuPont Performance Elastomers.

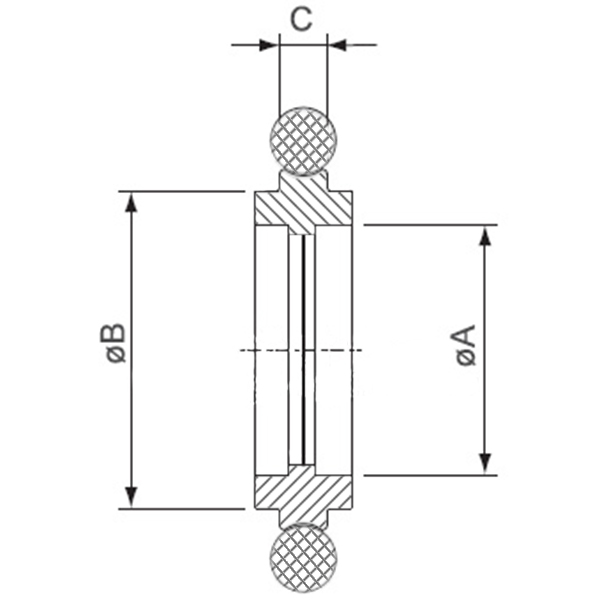

Dimensions:
A= 60.5 mm
B= 69.6 mm
C= 3.9 mm
Sieve Size=0.5 mm

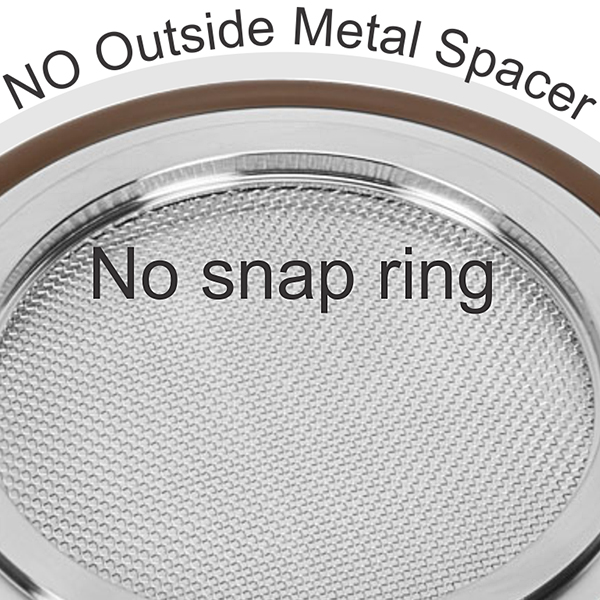

Centering Ring Assembly DN 63 ISO-LF, with Screen and NO Outside Spacer, ISO-63 Stainless Steel & Viton® O-Ring
