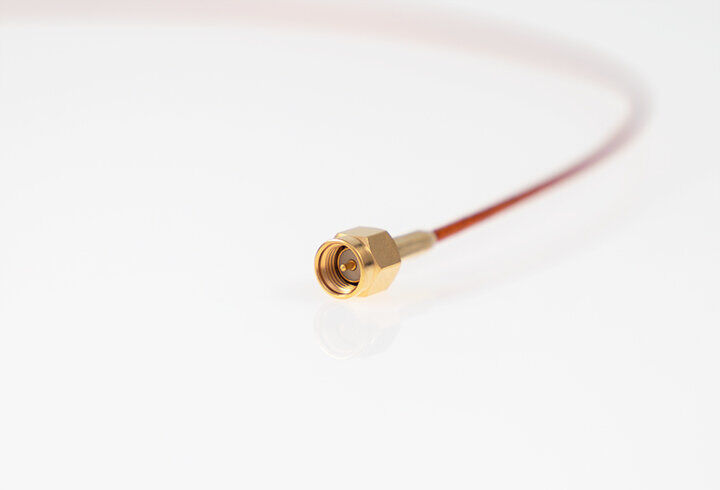

CABLE-SMA50-KAP-SE-1000 Accessories Accessories
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | SMA 50 Ohm |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Contact coating | Gold-plated |
| Wire type | stranded wire |
| Wire size (mm²) | 0.14 mm² |
| Wire size (AWG) | 26 |
| Cable type | coaxial |
| Article no. | 403548 |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Impedance | 50 Ohm |
| Plug connections | Not specified |
| Material housing/weld adapter | Copper alloy |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Length | 1000 mm |
| Length | 39.37 ″ |
| Purity class | PCS |
