Edwards Part Number: B8J200824.

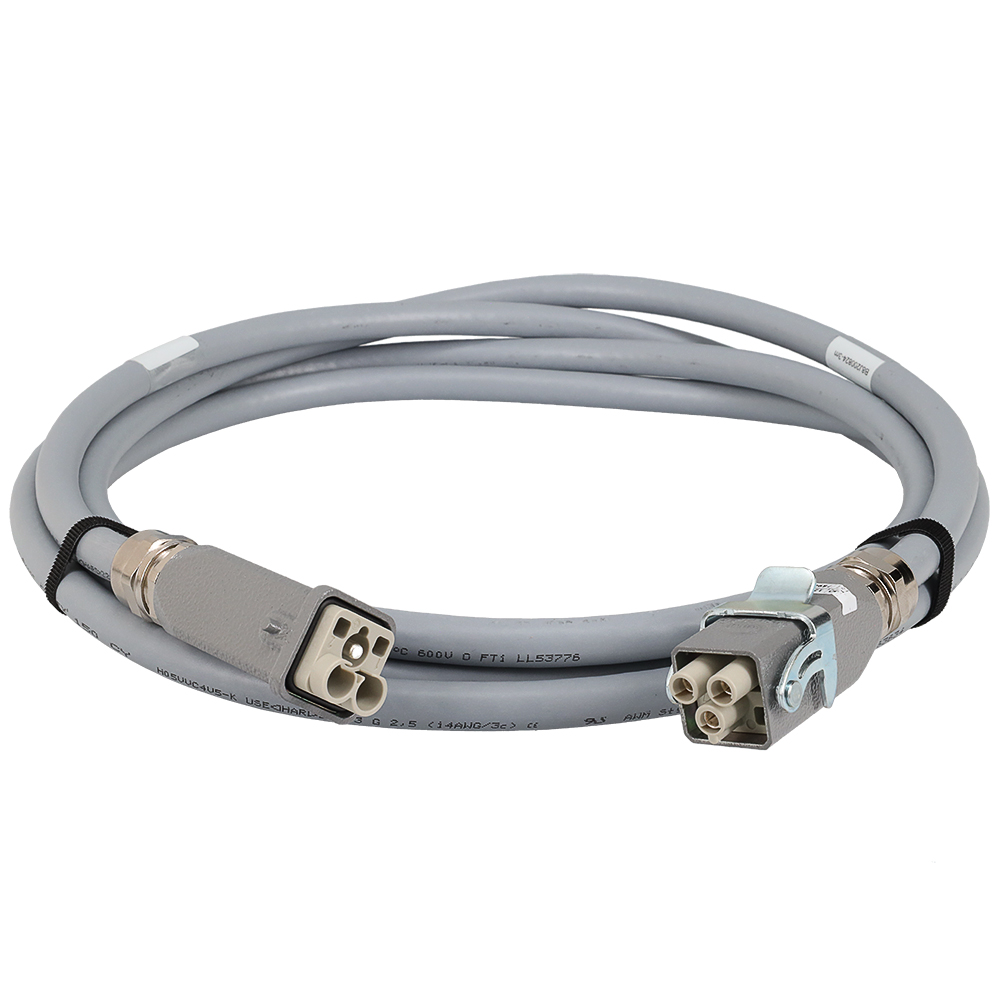

This Edwards 3m long, 48 VDC power supply extension cable extends the length of the power cable between a nEXT730D, nEXT930D, or nEXT1230H turbo pump and the EPS 800 power supply. This 3 meter cable is typically used when the power supply is used on a benchtop, remote from the pump. A 5 meter long extension power supply cable is also available (part number P1012349). This 3 meter long power supply cable has 3 pin Hastings type connectors on either end, and has Edwards part number B8J200824.
Note that when the EPS 800 power supply is mounted directly to the pump (using mounting kit part number P1012528), the pump's 0.6 meter long permanently attached power cable is used to directly connect the pump to the EPS 800 power supply. A pump-to-power supply extension cable is not needed in this case.
This Edwards extension cable is used to extend the distance between the EPS 800 power supply and these turbo pumps:
Note that when the EPS 800 power supply is mounted directly to the pump (using mounting kit part number P1012528), the pump's 0.6 meter long permanently attached power cable is used to directly connect the pump to the EPS 800 power supply. A pump-to-power supply extension cable is not needed in this case.
This Edwards extension cable is used to extend the distance between the EPS 800 power supply and these turbo pumps:
- nEXT730D
- nEXT930D
- nEXT1230H
