Pfeiffer Vacuum Part Number: PKZ40003

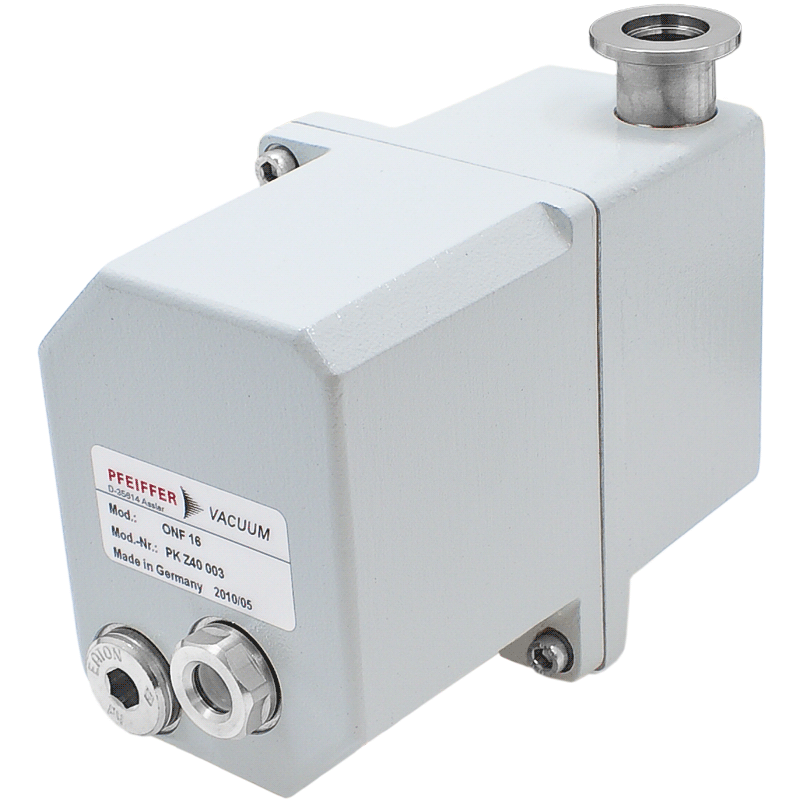

For Pfeiffer Pumps up to 12 m3/h (7 CFM). The Pfeiffer ONF 16 (KF16) oil mist filter separator is mounted on the exhaust connection of Pfeiffer rotary vane pumps. It
prevents air pollution from operating oil mist that is ejected by the pump to a
greater or lesser degree depending on the operating pressure.
The filter inserts are installed in a housing made of corrosion-resistant aluminum
and consist of a cylindrical filter of glass polyester fleece. The filter inserts are
opened by an incorporated pressure relief valve when the contamination becomes
excessive so that the maximum working pressure of 1.5 bar (absolute) cannot be
exceeded. The collected oil mist, now fluid can be observed through the sightglass and
discharged with the drain screw. For complete application, specifications and dimensions, download PDF below at AVAILABLE DOWNLOADS.
-

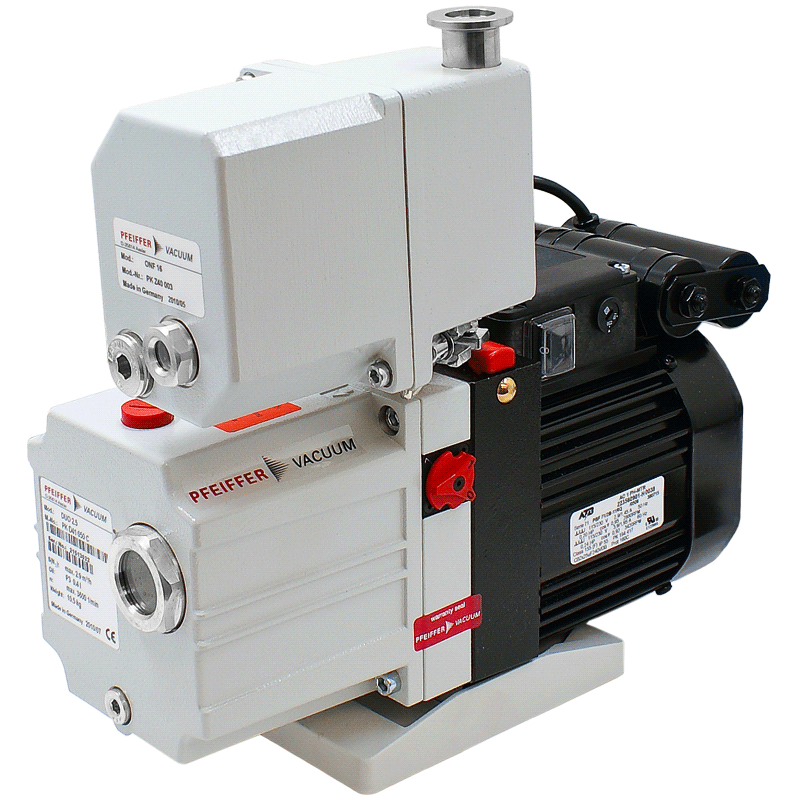

Fits Pfeiffer Rotary Vane Pumps with KF16 Outlet Flanges:
Pfeiffer Rotary Vane Pumps: Duo 1.5/1.5A, DUO 1.6/1.6M, Uno/Duo 2.5, Duo 3/3M, Duo 5/5M, Duo 6/6M, Duo 10/10M, Duo 11/11M
