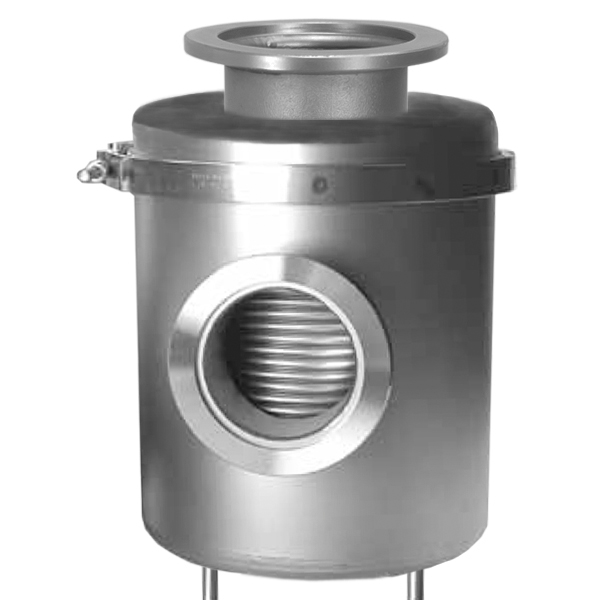

Angle Water Cooled Trap, Inlet and Outlet NW50 KF50, Body size 4.50 inch OD

Angle water cooled traps protect mechanical pumps and other downstream components from condensable process gasses and their by-products. They can extend or eliminate preventative maintenance intervals and pump overhauls. These unique water cooled traps have up to three coils of corrosion resistant 316L stainless steel tubing to provide a large cold surface area. Internal baffles combined with the coils create a perilous path for the gas flow, maximizing resident time and increasing contact between the gas and the coils. Depending on the application, house water or refrigerated water can be used to achieve the required temperature to cause by-products to pass from gas to solid phase. A 30 to 50 psi water supply is required. Anticipate a 1 gpm flow rate at 30 psi.

The two-piece trap body and 304 stainless steel construction allow these traps to be easily cleaned. Standard finish is beadblast. For proper sealing, apply a light coating of Krytox lube when cleaning or replacing the O-ring. Quick Disconnect (OPTIONAL) Fittings immediately shut off water flow from both directions for single handed, no-spill removal of the trap for preventative maintenance or O-ring replacement. Quick Disconnect water options are available just state while purchasing.

Features:

Two piece clamped body design

Water in and out tubes

Traps all condensable vapors

Stainless Steel type 304 construction, Viton O-Ring

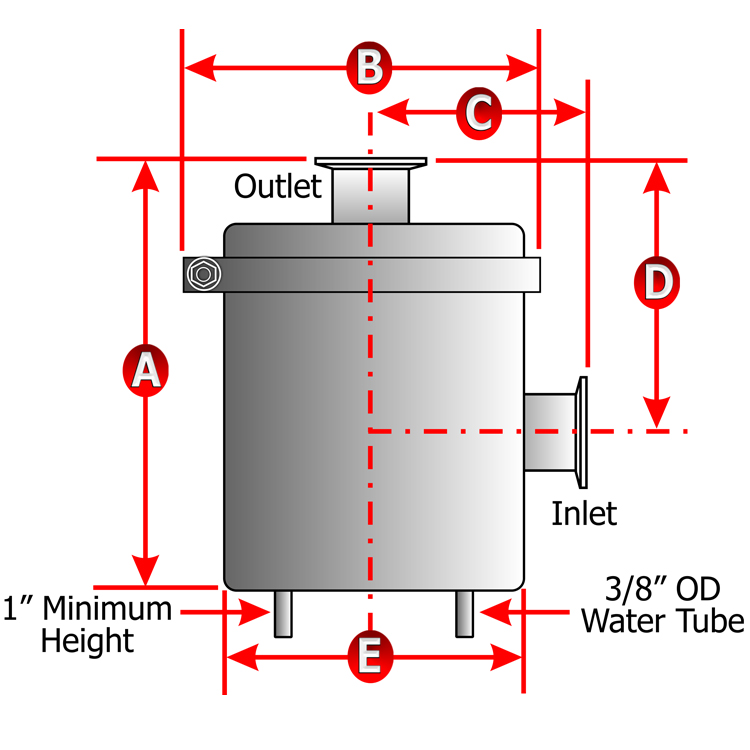

Common Dimensions & Specs:
A: 7.55"
B: 5.28"
C: 3.90"
D: 6.05"
E: 4.50"
Port OD: 2.00"
Quick Disconnect Water Option: Ask when purchasing
Inlet & Outlet Flange Size: KF50

Technical_Considerations_for_Selecting_Vacuum_Components_for_Chemical_Processes.pdf (Technical_Considerations_for_Selecting_Vacuum_Components_for_Chemical_Processes.pdf, 3,624 Kb) [Download]
