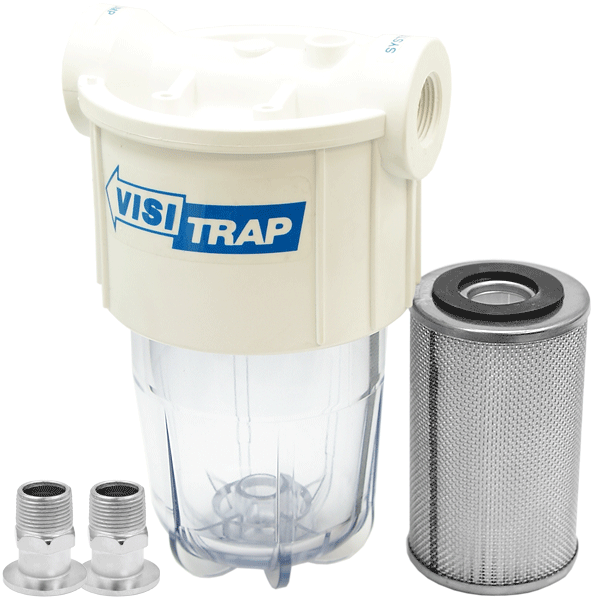

NEW Inlet VISITRAP® with Transparent Sump 4.5 inch size
The VISITRAP® protects your vacuum pump from being exposed directly to particles, liquids, or solutions that could travel down the vacuum line. The VISITRAP® acts as a clear see-through catch-pot so that you can see the trapped materials. While not under vacuum the VISITRAP® can be opened and cleaned as needed. The VISITRAP® will also help prevent back-streaming and vacuum pump oil from contaminating your vacuum system. Sometimes your vacuum pump needs protection from the materials you’re pumping, and sometimes your vacuum system needs protection from the pump. The VISITRAP® trap takes care of both. A transparent sump contains an element insert that traps foreign particles and vapors, keeping them from getting where they shouldn’t be. The VISITRAP® traps corrosive chemicals before they can damage the pump. It also traps particles and oil vapors and reduces oil backstreaming.
Key Features:
• Connected to the Inlet/Intake side of pump.
• Protects vacuum pumps from foreign materials.
• Select element inserts for trapping particles, water, oil, or corrosive chemicals.
• Transparent sump shows when to change element insert.
• Simple to maintain—unscrew plastic catchpot to change element inserts without removing entire Visitrap® from the vacuum system.
DOES NOT COME with element inserts or installation hardware.
The Intake and Exhuast Ports on the VisiTrap are 3/4 inch pipe thread and require an NPT to KF Adapter fitting. Depending on the size of the inlet flange on you vacuum pump, a KF25 to 3/4 inch Adapter is needed for installation. Adapters, other hardware and interchangeable Insert elements for this trap are available on this website. Insert Elements Include, Copper Gauze, Stainless Steel, Molecular Sieve, SodaSorb, Activated Charcoal, Activated Alumina, PolyPro 2, PolyPro 5, PolyPro 20. For application of insert elements see instruction manual, downloadable from this website....see below (AVAILABLE DOWNLOADS)
Specs:
Fits ALL rotary vane pumps up to 5 CFM with a KF25 inlet flange.
Inlet and Outlet 3/4 inch female NPT (national pipe thread)
Dimensions: Diameter 5.5", Overall Height 8", Requires 1.5" space for sump removal.
Construction: Polypropylene housing; styrene acrylonitrile sump.
The VISITRAP® protects your vacuum pump from being exposed directly to particles, liquids, or solutions that could travel down the vacuum line. The VISITRAP® acts as a clear see-through catch-pot so that you can see the trapped materials. While not under vacuum the VISITRAP® can be opened and cleaned as needed. The VISITRAP® will also help prevent back-streaming and vacuum pump oil from contaminating your vacuum system. Sometimes your vacuum pump needs protection from the materials you’re pumping, and sometimes your vacuum system needs protection from the pump. The VISITRAP® trap takes care of both. A transparent sump contains an element insert that traps foreign particles and vapors, keeping them from getting where they shouldn’t be. The VISITRAP® traps corrosive chemicals before they can damage the pump. It also traps particles and oil vapors and reduces oil backstreaming.
Key Features:
• Connected to the Inlet/Intake side of pump.
• Protects vacuum pumps from foreign materials.
• Select element inserts for trapping particles, water, oil, or corrosive chemicals.
• Transparent sump shows when to change element insert.
• Simple to maintain—unscrew plastic catchpot to change element inserts without removing entire Visitrap® from the vacuum system.
DOES NOT COME with element inserts or installation hardware.
The Intake and Exhuast Ports on the VisiTrap are 3/4 inch pipe thread and require an NPT to KF Adapter fitting. Depending on the size of the inlet flange on you vacuum pump, a KF25 to 3/4 inch Adapter is needed for installation. Adapters, other hardware and interchangeable Insert elements for this trap are available on this website. Insert Elements Include, Copper Gauze, Stainless Steel, Molecular Sieve, SodaSorb, Activated Charcoal, Activated Alumina, PolyPro 2, PolyPro 5, PolyPro 20. For application of insert elements see instruction manual, downloadable from this website....see below (AVAILABLE DOWNLOADS)
Specs:
Fits ALL rotary vane pumps up to 5 CFM with a KF25 inlet flange.
Inlet and Outlet 3/4 inch female NPT (national pipe thread)
Dimensions: Diameter 5.5", Overall Height 8", Requires 1.5" space for sump removal.
Construction: Polypropylene housing; styrene acrylonitrile sump.
