Agilent Varian VHS-6 & VHS-250 Foreline Baffle Assembly, Diffusion Pump Replacement Parts PN L9172301

Write a review
$42901
On backorder
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

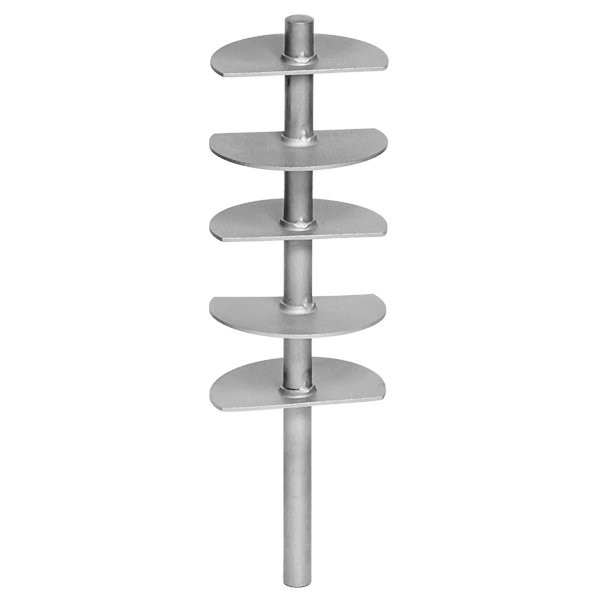

Agilent Varian VHS-6 & VHS-250 Foreline Baffle Assembly, Diffusion Pump Replacement Parts
Agilent Varian Part Number L9172301

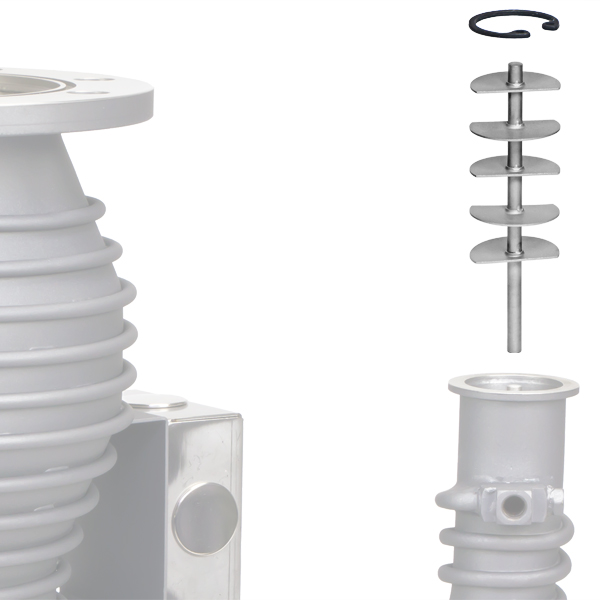

These Agilent Varian VHS-6 & VHS-250 diffusion pump replacement foreline baffle assemblies are OEM Agilent Varian replacement parts with part number L9172301. The foreline baffle is located in the roughing line exhaust arm of the diffusion pump. They are designed to help prevent diffusion pump oil from being transported to the roughing pump under high throughput conditions. See the VHS-6 diffusion pump roughing line arm noted by balloon #6 in the illustration below.


VHS-4-6-250a.pdf (VHS-4-6-250a.pdf, 981 Kb) [Download]

Agilent-Varian-Diffusion-Pumps-Catalog.pdf (Agilent-Varian-Diffusion-Pumps-Catalog.pdf, 2,786 Kb) [Download]
