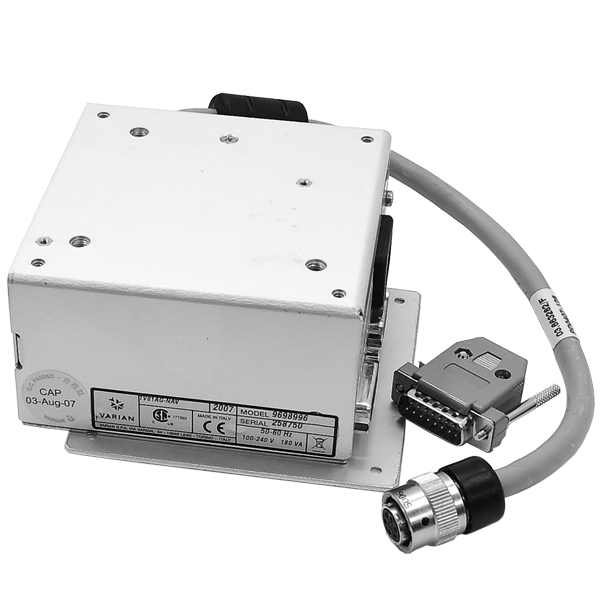

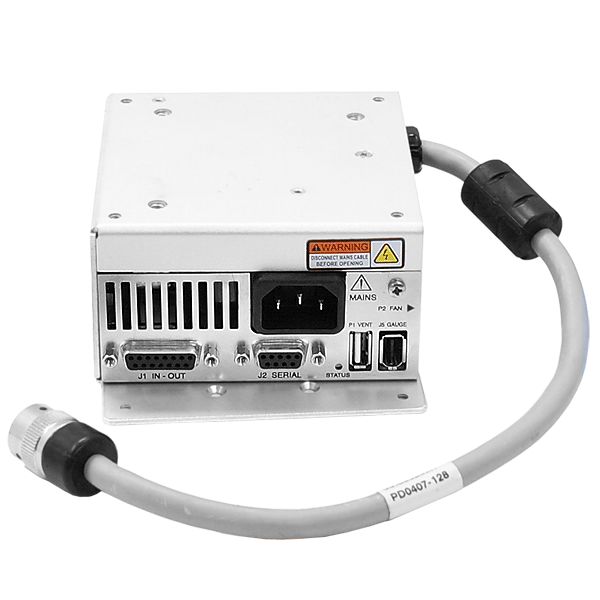

Agilent Varian Turbo-V 81-AG Navigator Solid State Vacuum Pump Controller PN 9698996
This Agilent Varian Turbo-V81-AG Navigator Controller is a single-state controlled frequency converter with the following features.
These Agilent Varian Turbo-V 81-AG Navigator controllers are driven by a single chip microcomputer and consist of two PCBs which include power supply and 3-phase output, analog and I/O section, microprocessor and digital section. The power supply, together with the 3-phase output converts the single phase AC mains supply or 24Vdc supply into a 3-phase low voltage, medium frequency output which is required to power the pump. These controllers have a serial port RS-232/485 which allows the pump to be interfaced with the system controls and to be operated via PC with T-Plus Software. (software sold separately) on this website. These Agilent Varian Turbo-V 81-AG controllers are New and come with manufacture warranty. For complete specifications, controller functions, and instruction manual please see the avaliable PDF download below.
This Agilent Varian Turbo-V81-AG Navigator Controller is a single-state controlled frequency converter with the following features.
- Drives the pumps of the Turbo-V81 Family.
- Powers the pump cooling fan.
- Drives the vent valve
- Provides and acquires the pressure of the wide range gauge.
- Remote I/O compatible with the previous verson.
- Navigator default serial compatible with the previous RS 232 and 485 version
- Able to operate with Active Gauges (IM-500, Full Range Gauge Frg-700 and FRG-702).
These Agilent Varian Turbo-V 81-AG Navigator controllers are driven by a single chip microcomputer and consist of two PCBs which include power supply and 3-phase output, analog and I/O section, microprocessor and digital section. The power supply, together with the 3-phase output converts the single phase AC mains supply or 24Vdc supply into a 3-phase low voltage, medium frequency output which is required to power the pump. These controllers have a serial port RS-232/485 which allows the pump to be interfaced with the system controls and to be operated via PC with T-Plus Software. (software sold separately) on this website. These Agilent Varian Turbo-V 81-AG controllers are New and come with manufacture warranty. For complete specifications, controller functions, and instruction manual please see the avaliable PDF download below.
