Pressure Range: 1 × 10-3 Torr to 5 × 10-9 Torr.

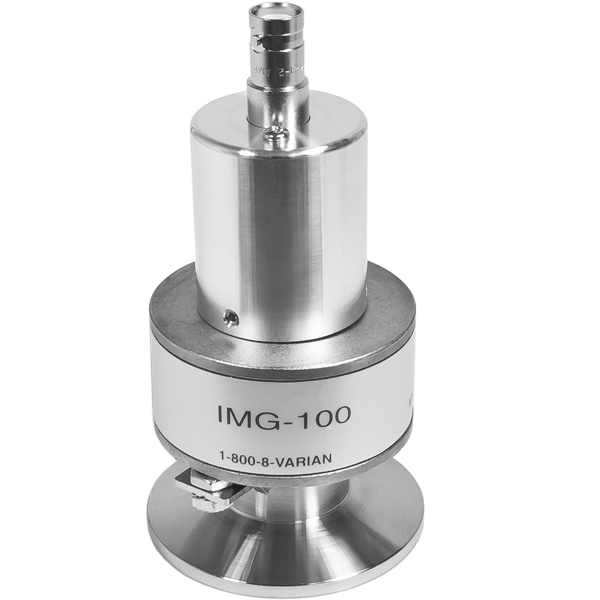

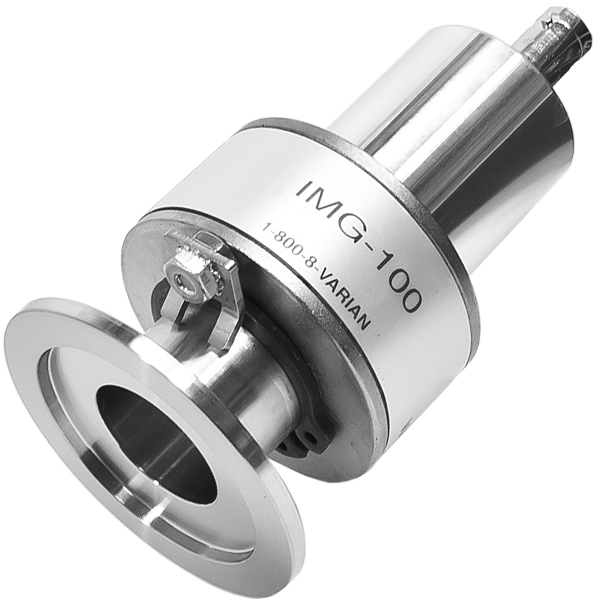

This is a Agilent Varian IMG-100 Inverted Magnetron High-Vacuum Gauge, NW40, KF40 Flange, Pressure Range: 1 × 10-3 Torr to 5 × 10-9 Torr. Maximum Bakeout Temperature: 150 °C (with cable disconnected), Materials Exposed to Vacuum: Stainless Steel, Nickel, Nickel Alloy 52, Glass. The IMG-100 is a rugged and accurate high vacuum gauge
featuring a wide measurement range, fast starting time, good
accuracy and superior repeatability in challenging
environments. The IMG-100 is ideal for use in industrial
applications such as metal deposition, glass coaters, vacuum
furnaces, degassing ovens, and electron-beam welders.
The simple design requires no heated filament, so the IMG-
100 has an excellent lifetime, is easily serviced, and is tolerant
of sudden or frequent exposure to atmosphere.

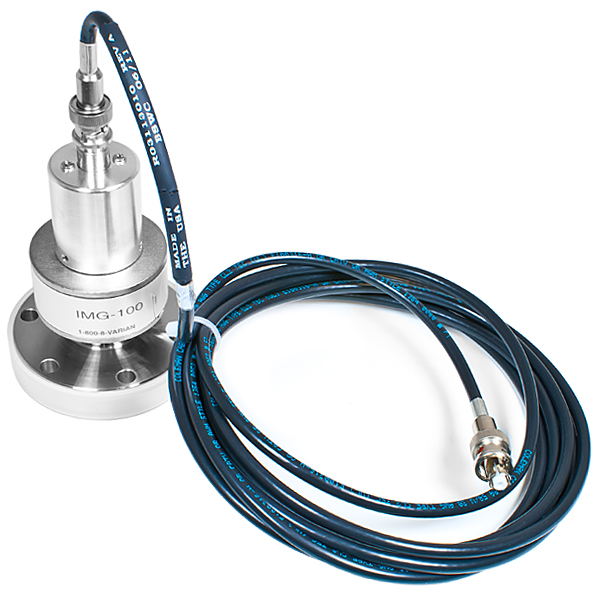

Further, there is less risk of heat from the gauge interfering with a critical experiment or process. The compact size allows flexible installation in any orientation, while the locking SHV highvoltage connector ensures safety and positive electrical contact. A precisely designed magnetic field constrains ionized gas molecules for accurate pressure measurement, so emission of stray electrons and photons is minimized. The IMG-100 is easily interfaced with Varian's XGS-600 gauge controller for integration into a variety of vacuum systems, or for use as a stand-alone pressure measurement tool. This is the Agilent Varian IMG-100, NW40, KF40 Flange, gauge only, signal cable and controller sold separately on this website. The complete operating instruction manual and other pertinent data can be download in pdf format below. Agilent Varian Part Number R0310302.
Further, there is less risk of heat from the gauge interfering with a critical experiment or process. The compact size allows flexible installation in any orientation, while the locking SHV highvoltage connector ensures safety and positive electrical contact. A precisely designed magnetic field constrains ionized gas molecules for accurate pressure measurement, so emission of stray electrons and photons is minimized. The IMG-100 is easily interfaced with Varian's XGS-600 gauge controller for integration into a variety of vacuum systems, or for use as a stand-alone pressure measurement tool. This is the Agilent Varian IMG-100, NW40, KF40 Flange, gauge only, signal cable and controller sold separately on this website. The complete operating instruction manual and other pertinent data can be download in pdf format below. Agilent Varian Part Number R0310302.
Can be used with the following controllers:
- Varian Multi-Gauge Controller
- Varian Senn Torr Gauge Controller
- Varian XGS 600 Gauge Controller
