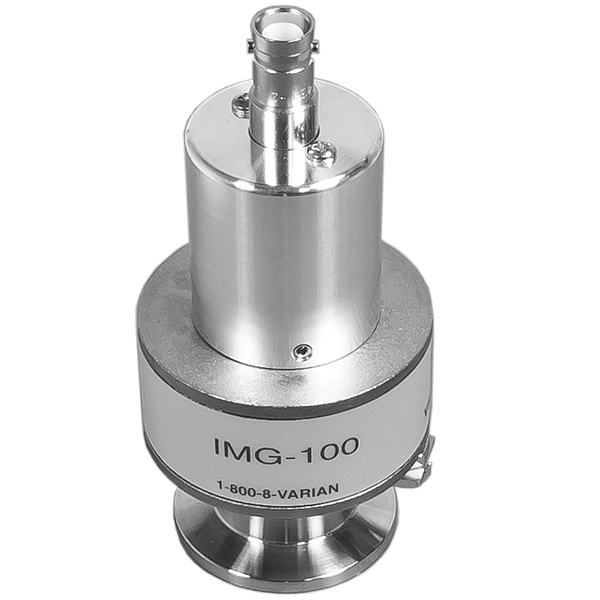

Agilent Varian IMG-100 Inverted Magnetron High-Vacuum Gauge, NW25, KF25 Flange, SS
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Pressure Range 1 × 10-3 Torr to 5 × 10-9 Torr.
This is a Agilent Varian IMG-100 Inverted Magnetron High-Vacuum Gauge, NW25, KF25 Flange, Pressure Range: 1 × 10-3 Torr to 5 × 10-9 Torr. Maximum Bakeout Temperature: 150 °C (with cable disconnected), Materials Exposed to Vacuum: Stainless Steel, Nickel, Nickel Alloy 52, Glass. The IMG-100 is a rugged and accurate high vacuum gauge
featuring a wide measurement range, fast starting time, good
accuracy and superior repeatability in challenging
environments. The IMG-100 is ideal for use in industrial
applications such as metal deposition, glass coaters, vacuum
furnaces, degassing ovens, and electron-beam welders.
The simple design requires no heated filament, so the IMG-
100 has an excellent lifetime, is easily serviced, and is tolerant
of sudden or frequent exposure to atmosphere.
Further, there is less risk of heat from the gauge interfering with a critical experiment or process. The compact size allows flexible installation in any orientation, while the locking SHV highvoltage connector ensures safety and positive electrical contact. A precisely designed magnetic field constrains ionized gas molecules for accurate pressure measurement, so emission of stray electrons and photons is minimized. The IMG-100 is easily interfaced with Varian's XGS-600 gauge controller for integration into a variety of vacuum systems, or for use as a stand-alone pressure measurement tool. This is the Agilent Varian IMG-100, NW25, KF25 Flange, gauge only, signal cable and controller sold separately on this website. For complete operating instructions and other pertinent data in .pdf format, scroll down to (AVAILABLE DOWNLOADS:). Agilet Varian Part Number R0310301.
Further, there is less risk of heat from the gauge interfering with a critical experiment or process. The compact size allows flexible installation in any orientation, while the locking SHV highvoltage connector ensures safety and positive electrical contact. A precisely designed magnetic field constrains ionized gas molecules for accurate pressure measurement, so emission of stray electrons and photons is minimized. The IMG-100 is easily interfaced with Varian's XGS-600 gauge controller for integration into a variety of vacuum systems, or for use as a stand-alone pressure measurement tool. This is the Agilent Varian IMG-100, NW25, KF25 Flange, gauge only, signal cable and controller sold separately on this website. For complete operating instructions and other pertinent data in .pdf format, scroll down to (AVAILABLE DOWNLOADS:). Agilet Varian Part Number R0310301.
Can be used with the following controllers:
- Varian Multi-Gauge Controller
- Varian Senn Torr Gauge Controller
- Varian XGS 600 Gauge Controller
