Agilent Varian VHS-4 Air Cooled Diffusion Pump Replacement Jet Assembly, Part Number F4785301

Write a review
$4,52530
On backorder
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

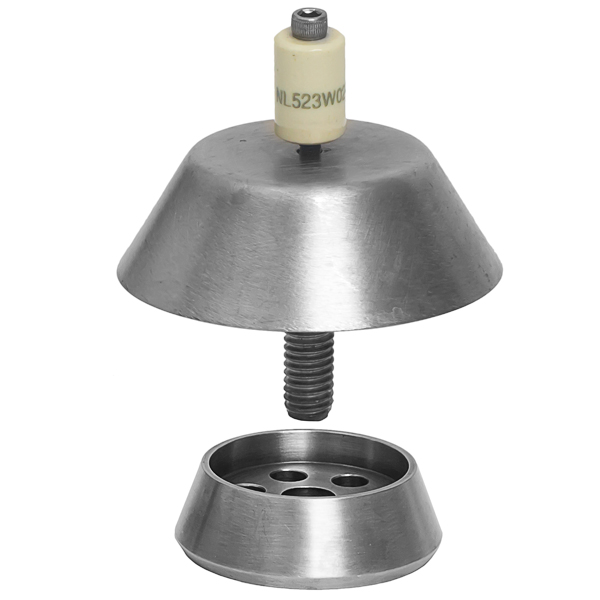

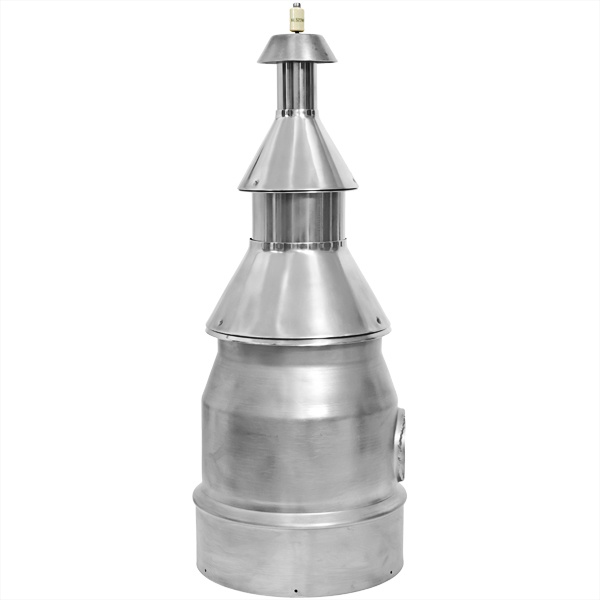

Agilent Varian VHS-4 Diffusion Pump Replacement Jet Assembly Top Level.
 Aginet Varian PN F4785301

This is the Agilent Varian VHS-4 diffusion pump jet assembly replacement parts. This kit includes the complete jet assembly components, see location of Jet Assembly in Fig. 3-3 in instruction manual PDF below. These are original OEM Agilent Varian replacement parts for the VHS-4 diffusion pump.

VHS-4-6-250a.pdf (VHS-4-6-250a.pdf, 981 Kb) [Download]

Agilent-Varian-Diffusion-Pumps-Catalog.pdf (Agilent-Varian-Diffusion-Pumps-Catalog.pdf, 2,786 Kb) [Download]
