Agilent Varian VHS-4 Foreline Baffle Assembly, Diffusion Pump Replacement Parts, 86754301

Write a review
$32288
On backorder
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

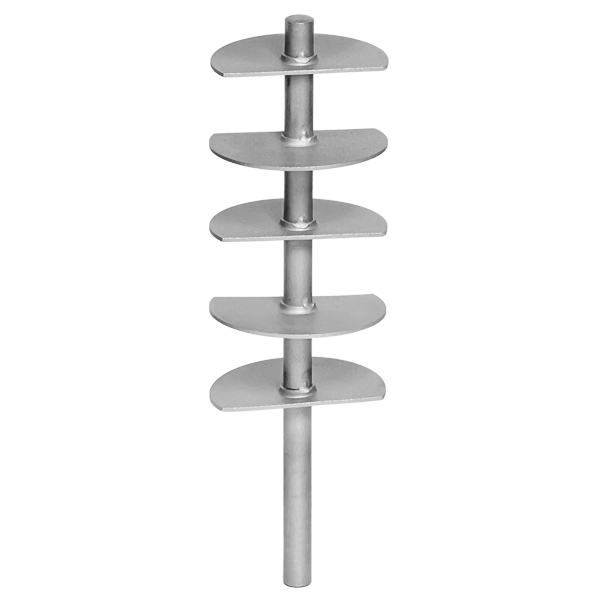

Agilent Varian VHS-4 Foreline Baffle Assembly, Diffusion Pump Replacement Parts.
 Agilent Varian Part Number 86754301

These Agilent Varian VHS-4 diffusion pump replacement foreline baffle assemblies are OEM Agilent Varian replacement parts with part number 86754301. The foreline baffle is located in the roughing line exhaust arm of the diffusion pump. They are designed to help prevent diffusion pump oil from being transported to the roughing pump under high throughput conditions. See the VHS-4 diffusion pump roughing line arm noted by balloon #4 in the illustration below.

VHS-4-6-250a.pdf (VHS-4-6-250a.pdf, 981 Kb) [Download]

Agilent-Varian-Diffusion-Pumps-Catalog.pdf (Agilent-Varian-Diffusion-Pumps-Catalog.pdf, 2,786 Kb) [Download]
