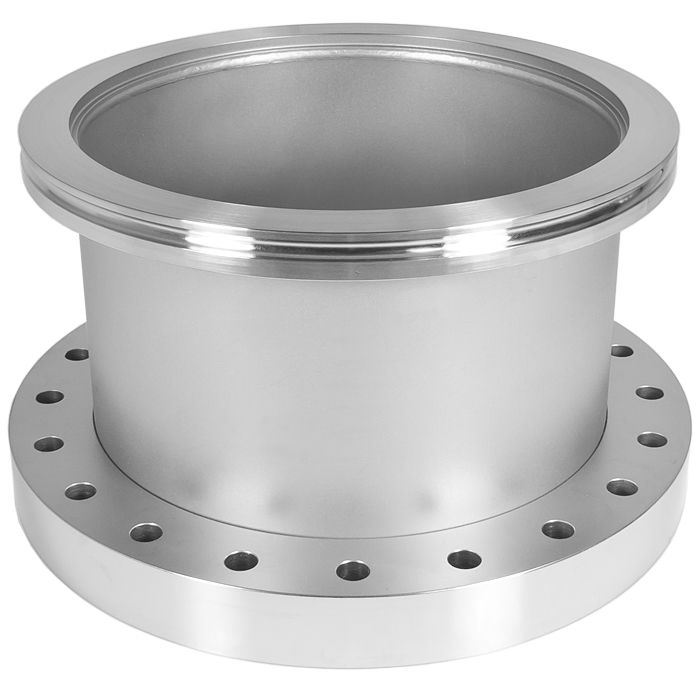

Adapter, NW-160 to Conflat CF 8 in. Vacuum Fittings, ISO-LF Flange to Conflat, Stainless Steel
Adapter, NW-160 to Conflat CF 8 in. Vacuum Fittings, ISO-LF Flange to Conflat, Stainless Steel
ISO-LF Flange Size: NW-160 to Conflat CF 8 inch
Common Dimensions: A = 4.45" (113mm), B = 5.83" (148mm), C = 8" (203mm)
These ISO to Conflat adapter vacuum fittings follow International Standards Organization (ISO) and Conflat standards. They have a flange sizes of NW-160 to CF 8 inch. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum flages are made of corrosive resistant stainless steel.
Adapter, NW-160 to Conflat CF 8 in. Vacuum Fittings, ISO-LF Flange to Conflat, Stainless Steel
ISO-LF Flange Size: NW-160 to Conflat CF 8 inch
Common Dimensions: A = 4.45" (113mm), B = 5.83" (148mm), C = 8" (203mm)
