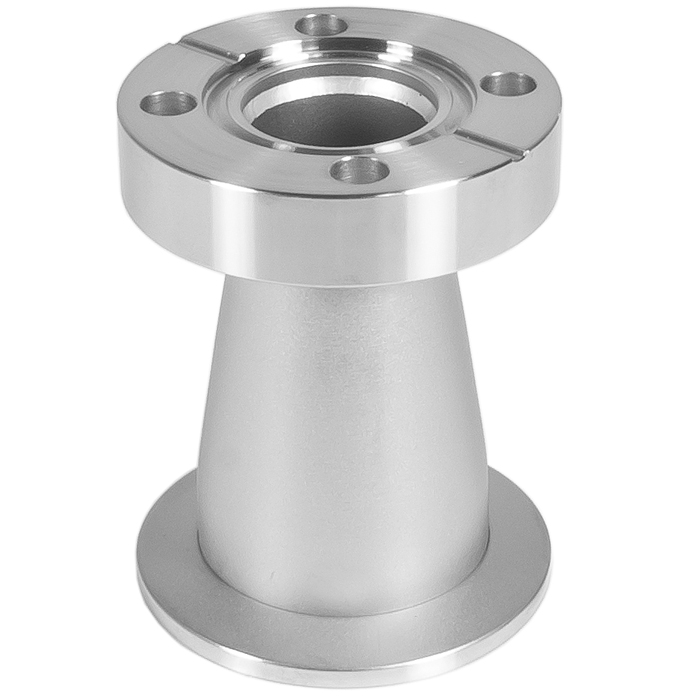

Adapter, Conical Reducer, KF-40 to CF 2-1/8 in., Flange Sizes ISO-KF NW-40 to Conflat® CFF 2.12 in., Stainless Steel
Adapter conical KF-40 to CF 2-1/8 in., Flange Sizes ISO-KF NW-40 to Conflat® CFF 2.12 in., Stainless Steel
ISO-KF Flange Size: NW-40 to CF 2-1/8

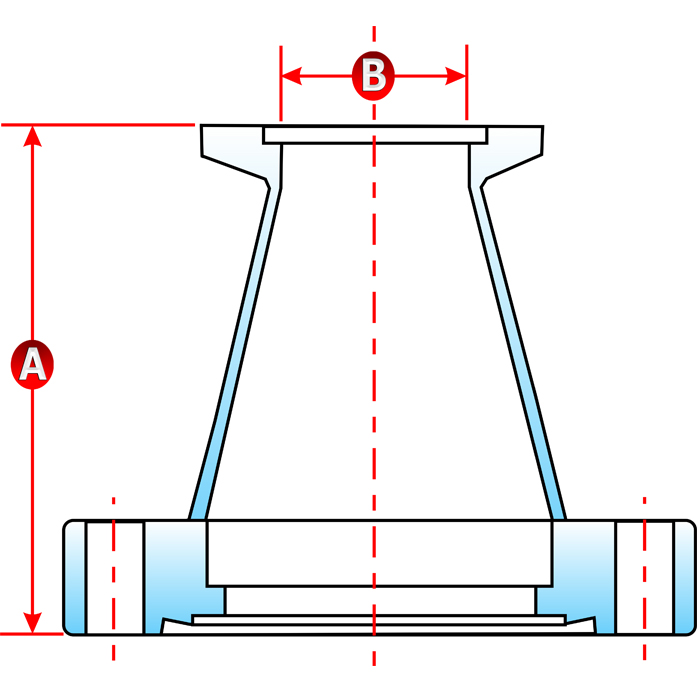

Common Dimensions: A = 2-1/2 inch (69mm), B = 1-3/8 inch (35mm)

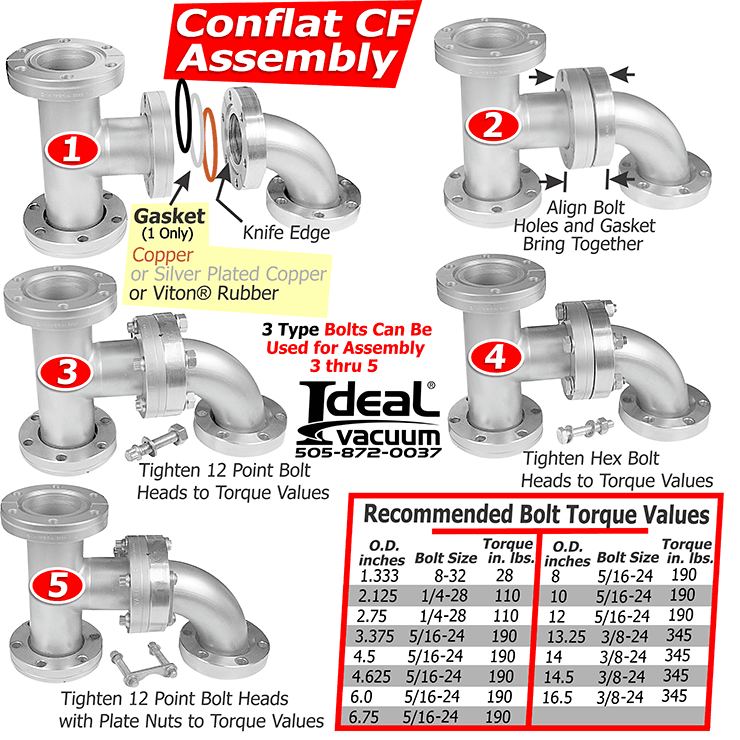

These conical adapters are KF-40 to CF 2-1/8 inches with flange sizes that follow ISO-KF NW-40 to Conflat® CFF 2.12 in. standards. They are commonly used to make connections between ISO-KF and Conflat® vacuum fittings. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel. Conflat® is a registered trademark of Varian Corporation.
Adapter conical KF-40 to CF 2-1/8 in., Flange Sizes ISO-KF NW-40 to Conflat® CFF 2.12 in., Stainless Steel
ISO-KF Flange Size: NW-40 to CF 2-1/8
Common Dimensions: A = 2-1/2 inch (69mm), B = 1-3/8 inch (35mm)
