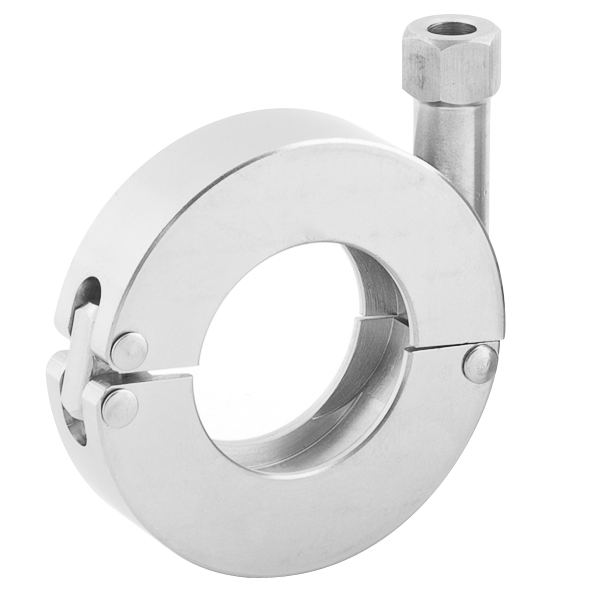

A&N CNC Machined Clamp KF25 flange, Stainless Steel, PN QF25-CS
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

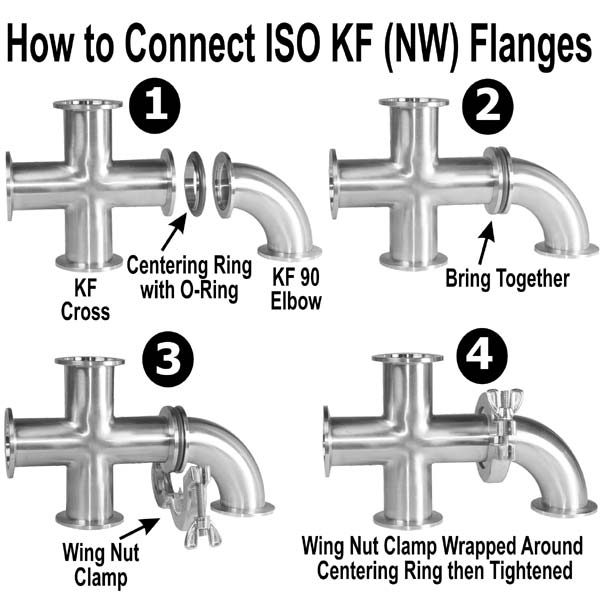

These A&N CNC Quick Clamps are for KF-25 vacuum fittings and follow ISO-KF standards and have a flange size of NW-25. Used especially for high strength, corrosive, high torque, high heat and low temperature applications. Machined from solid bar for greatly increased strength. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of SS 304 Stainless Steel.
Features Include:
- SS 304 Stainless steel body
- SS 304 Stainless steel hardware (pins, studs and hinges)
- Machined from solid bar for greatly increased strength
- Integrated locking handle to prevent accidental opening
- Great for corrosive, high torque, high heat and low temp applications
- Max. closing torque, 7ft. lbs.
- A&N CNC Clamp KF25 NW25 Flange Size, 304 Stainless Steel

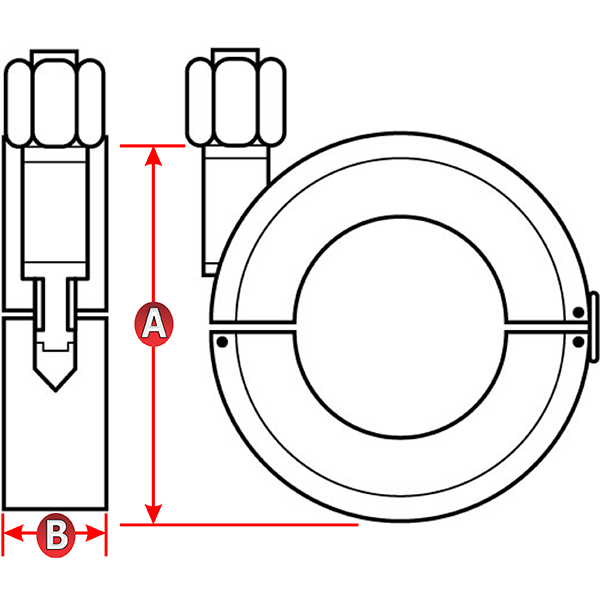

- Common Dimensions: A=2.45 in. (62mm), B=0.63 in. (16mm)
